Past Model-Neo 400 +

Neo 400+

NEO 400+
NEO 400+
NEO 400+
NEO 400+

Measurements & Weight



  • Length (LOA ): 12,70 mt
  • Length (LWL): 11,50 mt
  • Beam (Bmax): 3,99 mt
  • Draft: 2,70 or 3,00 mt
  • Displacement (Light): 5200 kg
  • Ballast: 2445 kg
  • Keel: 2500 kg
  • ORC GPH: 528/533
  • IRC TCF: 1.185/1200




Water & Fuel



  • Water Tanks: 200 lt
  • Fuel Tanks: 100 lt



Engine / Omologation / Crew



  •  Engine: Saildrive 30 hp
  •  CE Category: A ‐ Ocean
  • Crew Max: 10

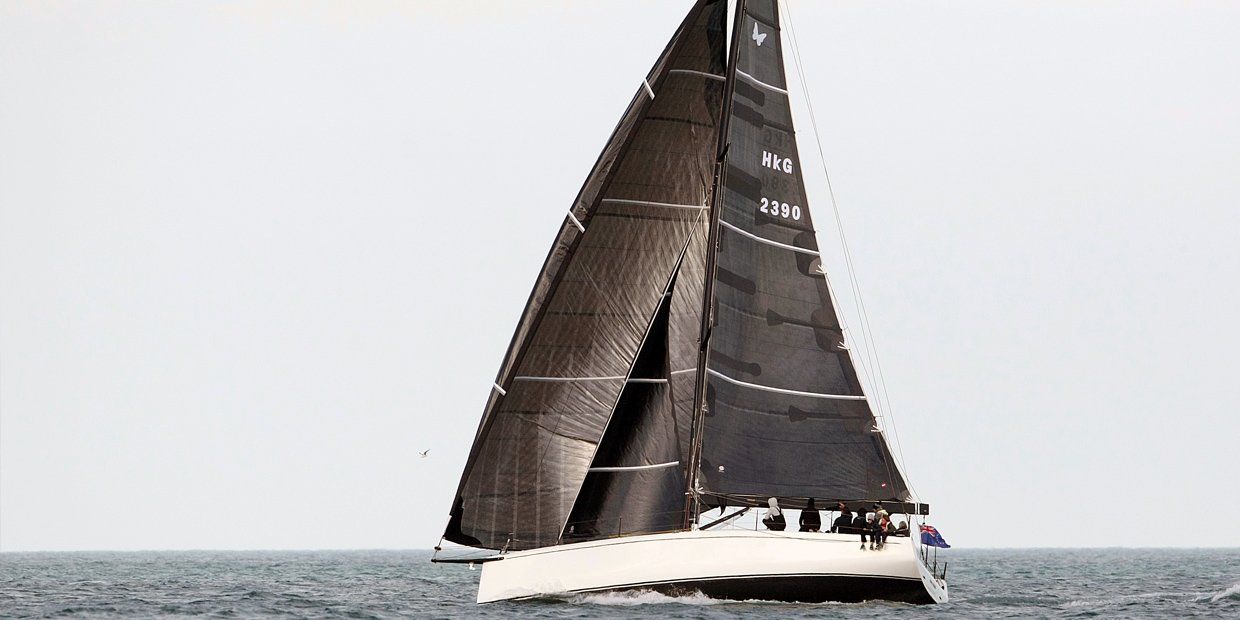

Sail Plan



  • Sail Area Upwind: 105 m2
  • Sail Area Downwind (Gennaker): 1230 m2
  • Main Area: 60 m2
  • Jib Area: 45 m2
  • Asymmetric Spi Area: 1170 m2
  • Concept: Neo Yachts
  • Builder: Neo Yachts
  • Designer: Ceccarelli Yacht Design

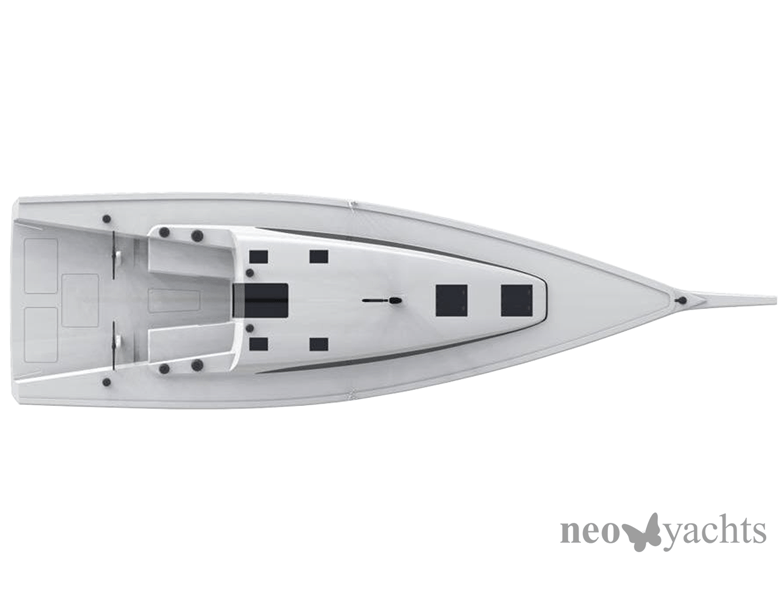

Deck Plan
  • NEO 400+ 1

    Slide title

    Write your caption here
    Button
  • NEO 400+ 2

    Slide title

    Write your caption here
    Button
  • A deck plan designed by people who know what racing means

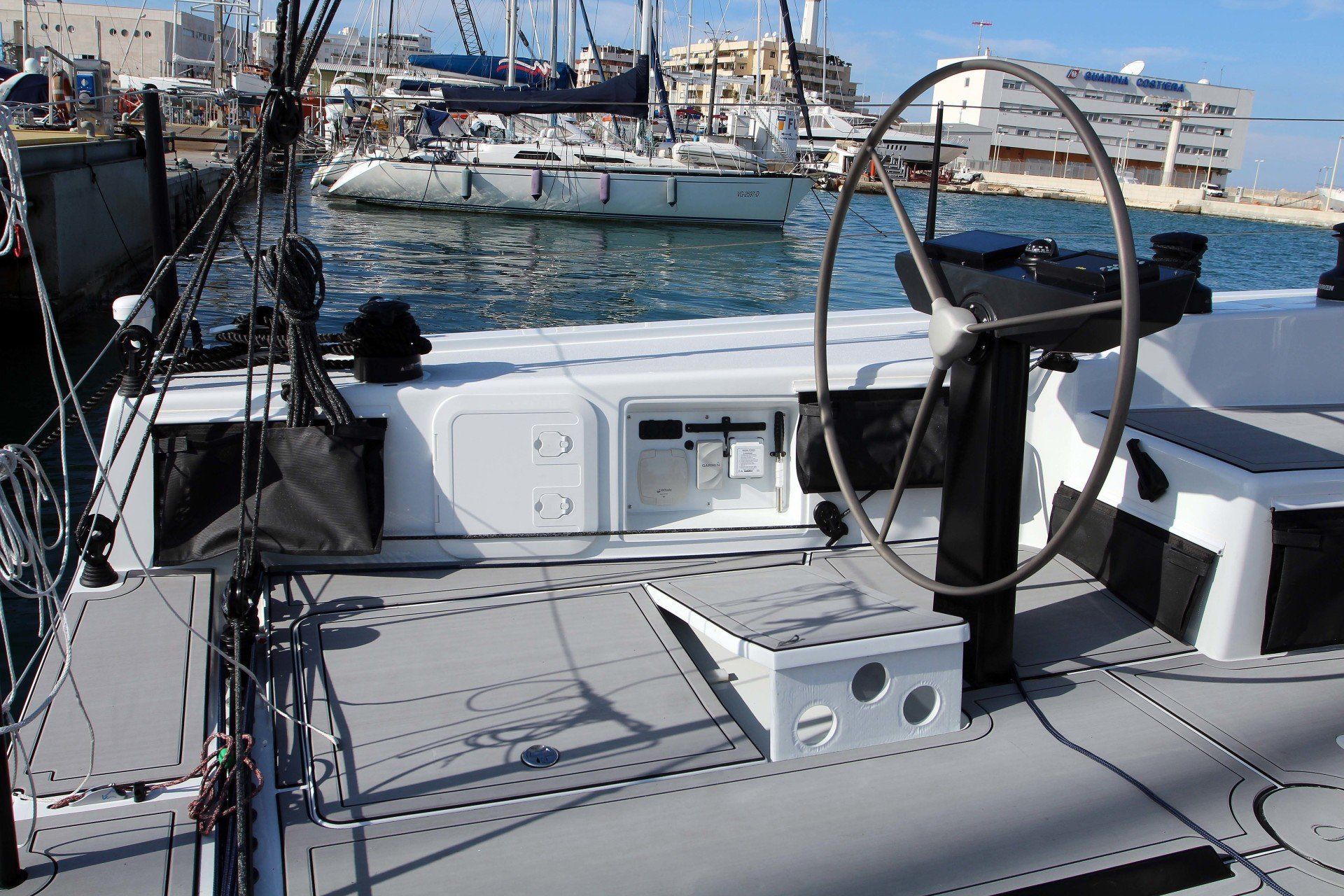

  • A wide cockpit comfortable while cruising, ergonomic while racing
  • On deck mast, on deck maneuvers, make Neo 400+ safe and dry
  • Waterproof bulkheads give Neo serious offshore sailing attitude
  • Low profile cabin is well integrated in a modern design concept
  • Flush, curves, continuous windows
  • Reverse bow emphasizes virtual water length keeping boat dry
  • Concave sheerline for beam effect
  • Composite stanchions and pulpits maintain outline clean and light


Versions
Clever

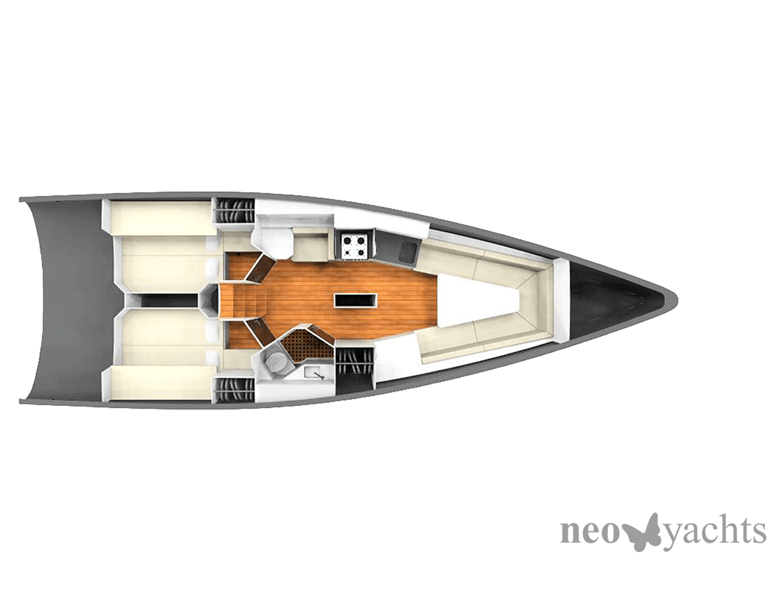

The Loft Version
    •     An innovative solution for maximum living space under sail
    •     Long sailbags can be stored on the side of the centerboard case
    •     3 pivoting beds allow comfortable sleep to the windward side for max stability when sailing in strong wind

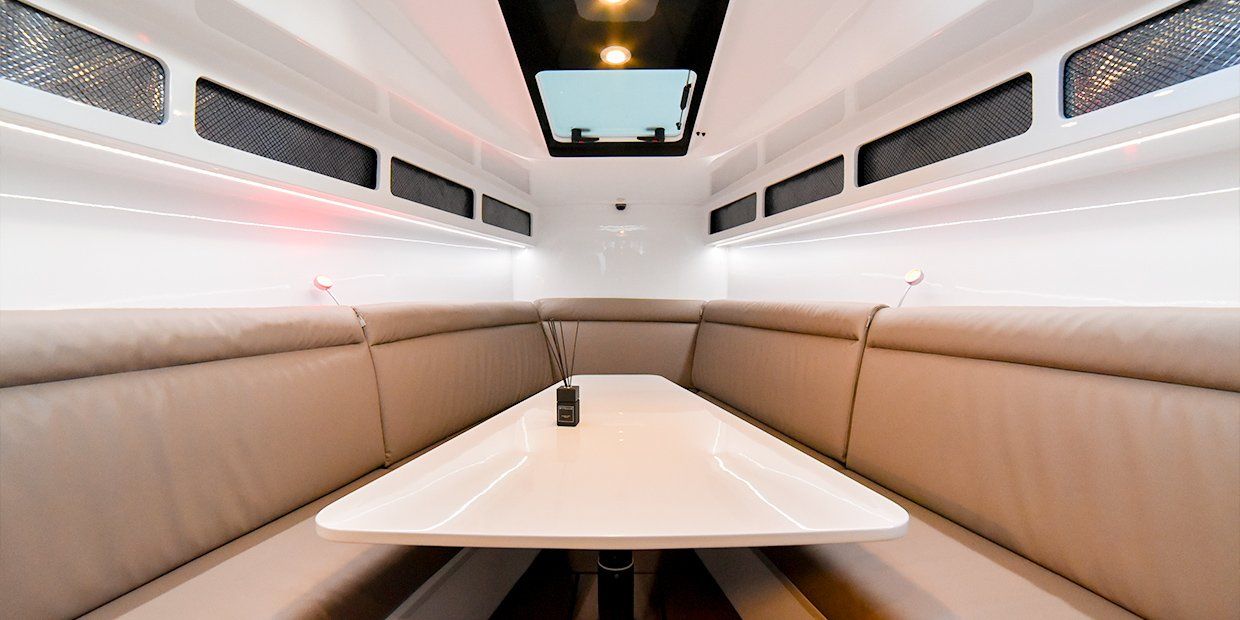

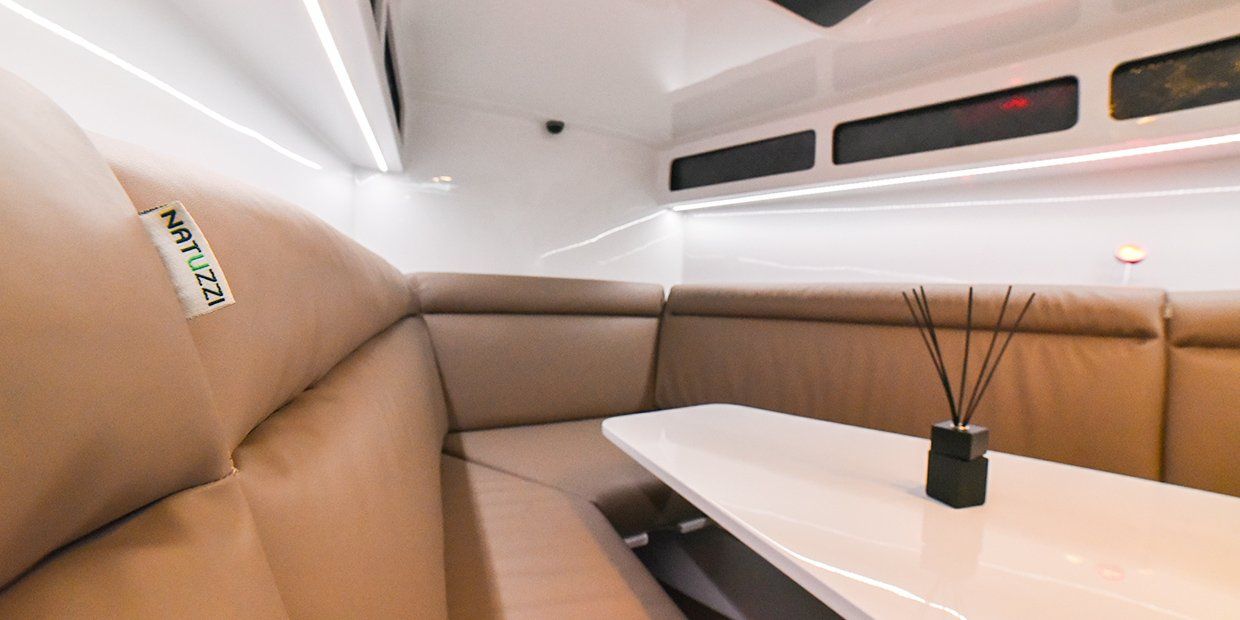

    •     The front dinette allows great dining space for 10 people
    •     It is ideal when dropping sails during the race
    •     It can be transformed in a comfortable double bed big cabin


    NEO 400+

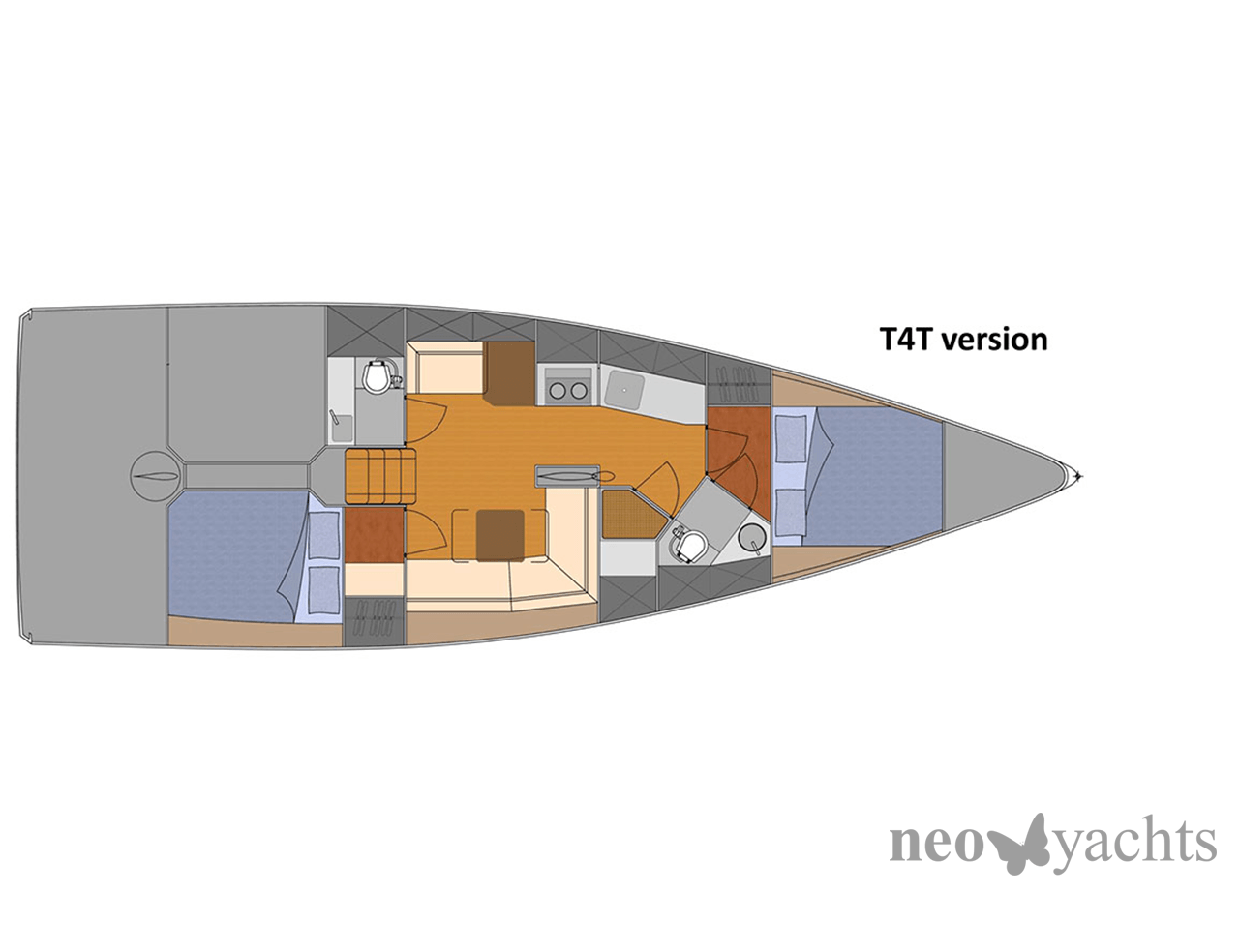

    NEO 400+ T4T Version
    T4T Version
      •  1 front owner cabin
      •  1 large guest cabin
      •  2 bathrooms
      •  1 large separate shower
      •  1 extra large service room/locker
      •  1 central dinette
      •  navstation to be reversible to sofa



      SPC Version
      Super Comfort Fast

      •  1 front owner cabin
      •  2 large guest cabin
      •  1 large bathrooms with shower
      •  1 central dinette
      •  navstation to be reversible to sofa


      NEO 400+ SPC Version
      Solutions

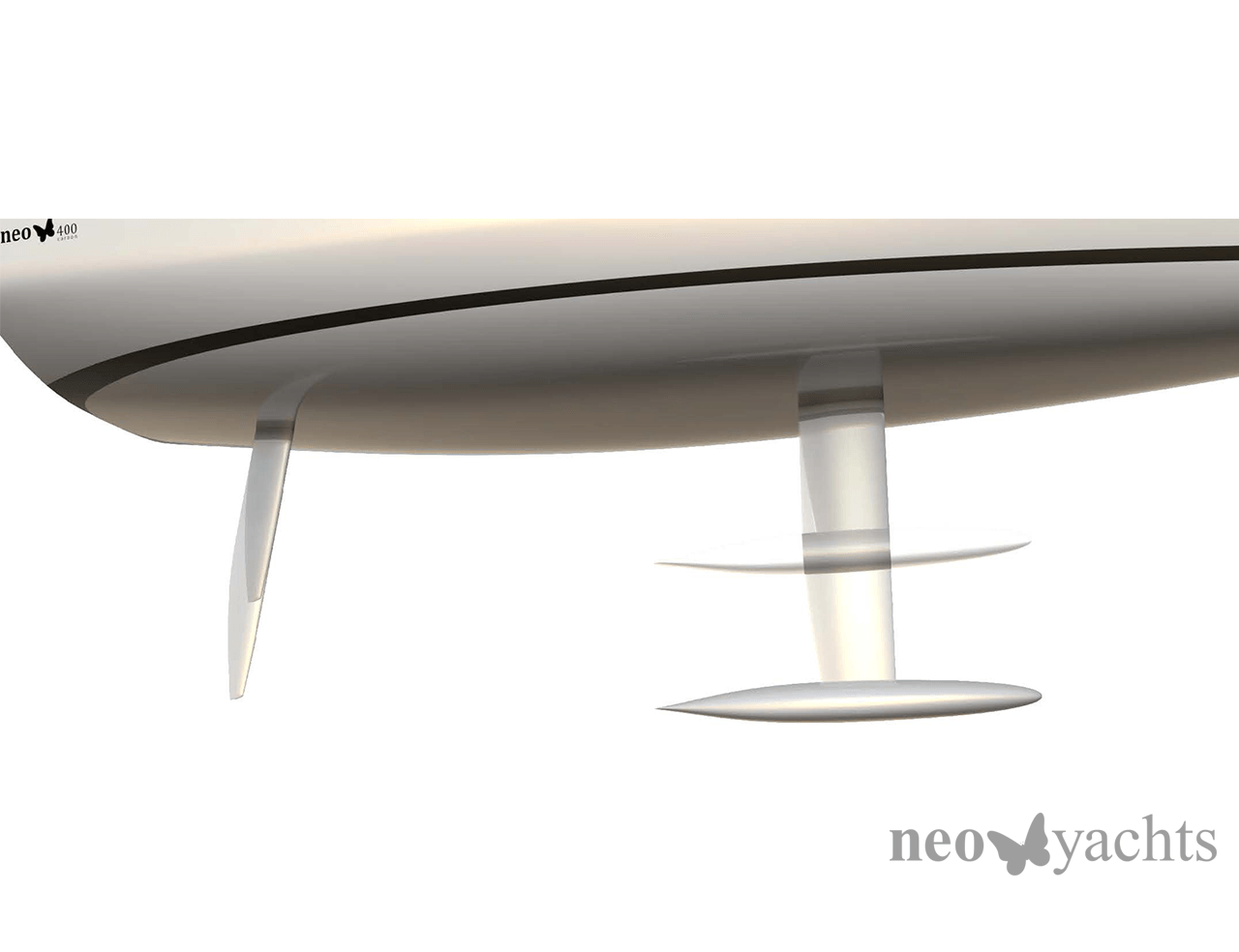

      NEO 400+ Smart Solution

      Smart Solution

      • Fast yacht need deep draft for stability and upwind sailing ability
      •  Cruising yachts need low draft for easy mooring
      •  Rudder and Keel of Neo 400 are retractable without the use of hydraulic systems (OPTIONAL)
      •  This system will allow fast split from ORCì to IRC keel and rudder
      •  Speed and comfort while sailing and easy anchoring also in shallow waters
      •  Weldox keel fin and lead bulb all CNC machined to perfection
      •  Carbon hi aspect ratio rudder to improve upwind ability


      PIVOTING BERTHS
      MORE SPACE OUTSIDE THAN A BIGGER BOAT

      • 3 people can comfortably sleep to windward in the back part of the yacht even when sailing in rough seas

      COMPOSITE INTERNALS

      • Modern
      • Efficient
      • Easy to clean
      • Long lasting
      NEO 400+ Pivoting Berths
      Full Carbon Construction
      STATE OF THE ART FULL CARBON CONSTRUCTION

      STATE OF THE ART FULL CARBON CONSTRUCTION

      • Direct female mould
      • Prepreg Technology from Gurit
      • Epoxi resin cured at 70°
      • Multiaxial and unidirectional carbon fibers
      • A light and strong structure allows a light displacement yacht with 52% of the weight in the keel
      • Category A yacht engineered by "Ceccarelli yacht design and engineering"
