Data
  • Length (LOA ): 17,50 m
  • Beam (Bmax): 5,30 m
  • Draft max: 4,20 - 2,80 m (Lifting Keel)
  • Displacement : 11.500 kg
  • Keel Weight: 5.300 kg
  • Water Ballast: 450 lt
  • Tender: 3 mt (stored with engine)

Water & Fuel



  • Water Tanks: 400 lt
  • Fuel Tanks: 200 lt



Engine / Omologation / Crew



  • Engine: Volvo Penta D-275 Saildrive 75 hp
  • CE Category: A ‐ Ocean
  • Crew Max: 15 people




Sail Plan



  • Sail Area Upwind: 184 m2
  • Sail Area Downwind: 410 m2
  • Main Area (Racing): 110 m2
  • Main Area (Cruising): 100 m2
  • Headsail Area: 74 m2
  • Asymmetric Spi Area: 300 m2
  • Builder: Neo Yachts & Composites
  • Designer: Carkeek Design Partners

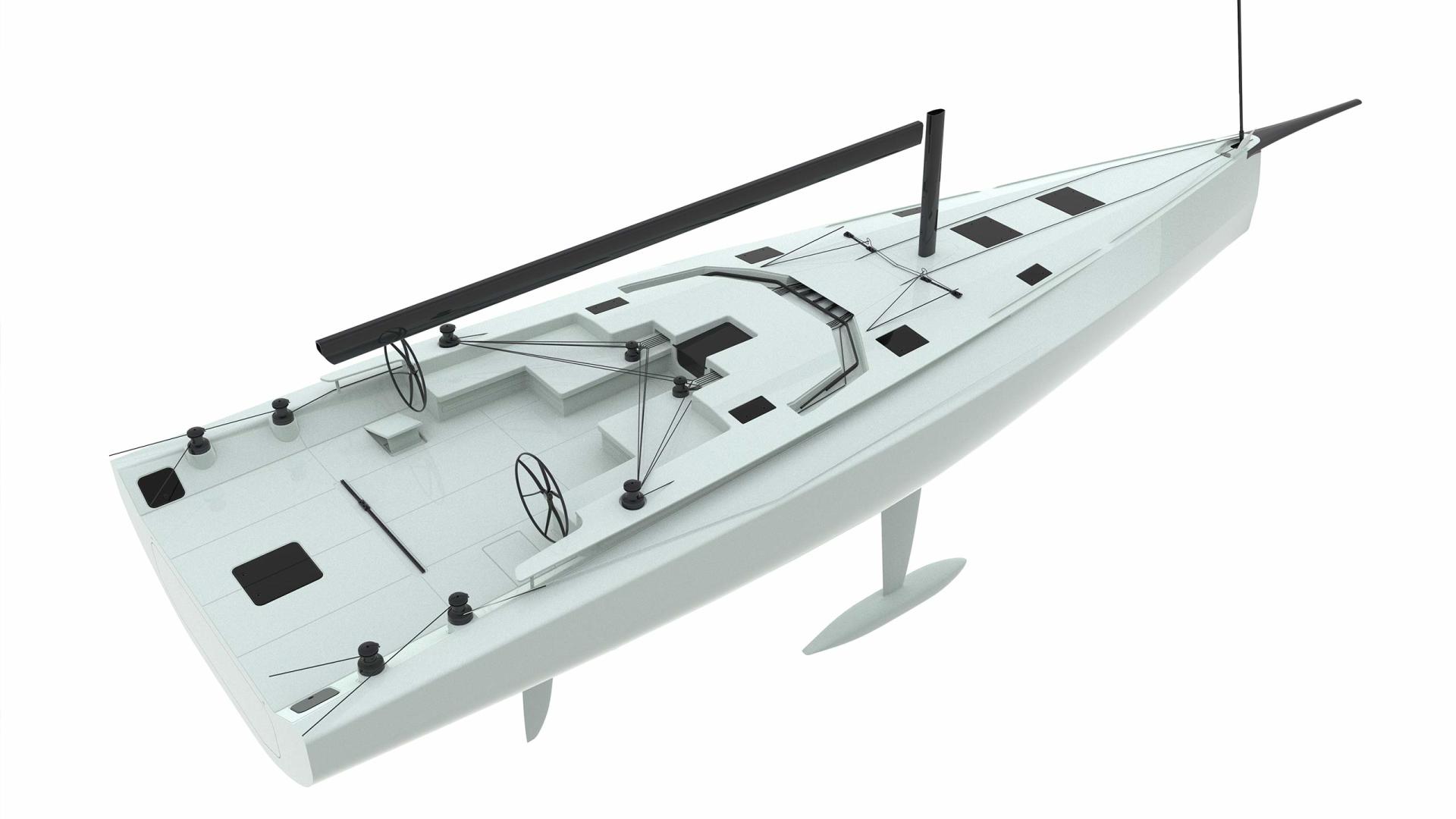

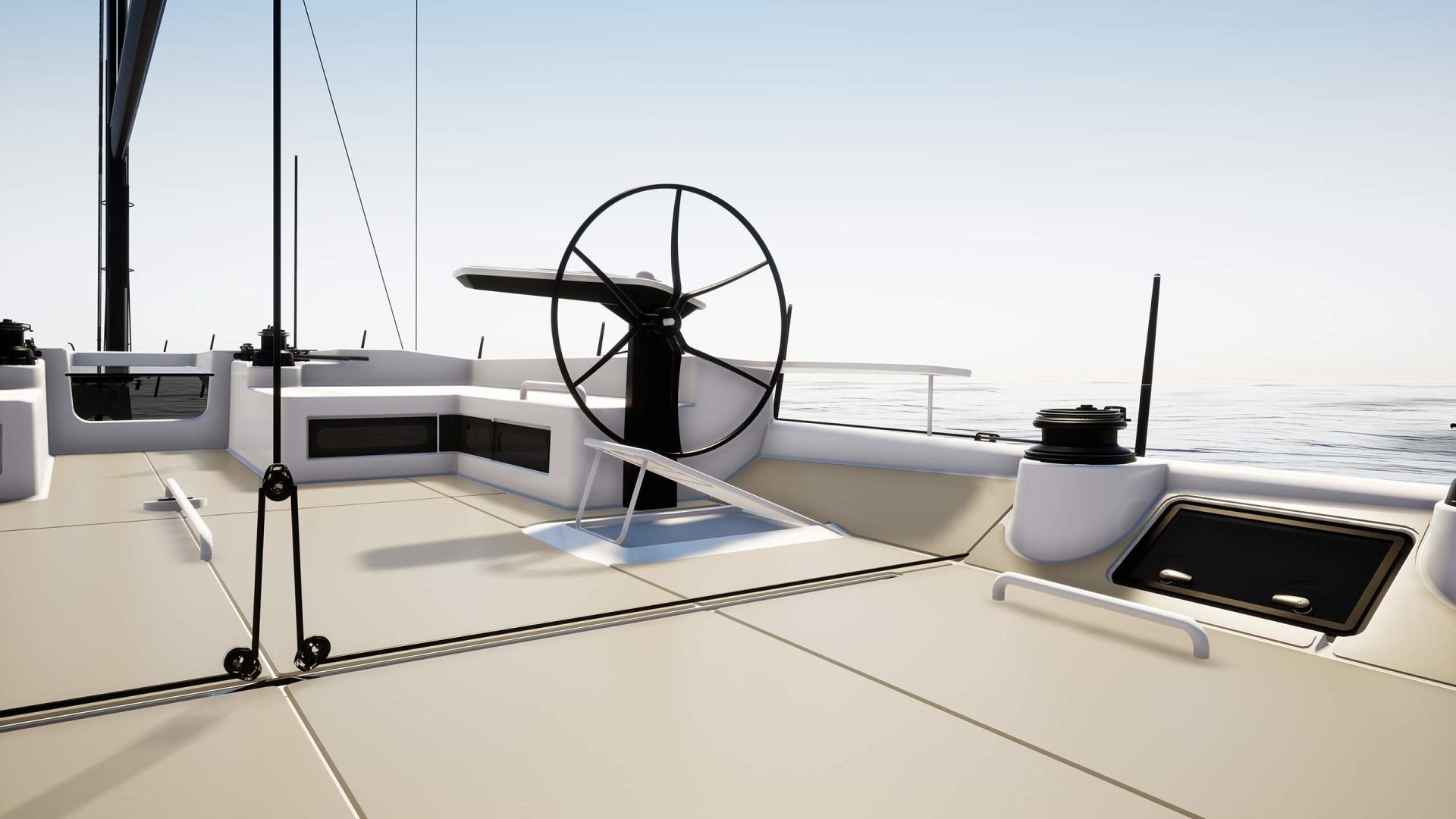

Deck Plan

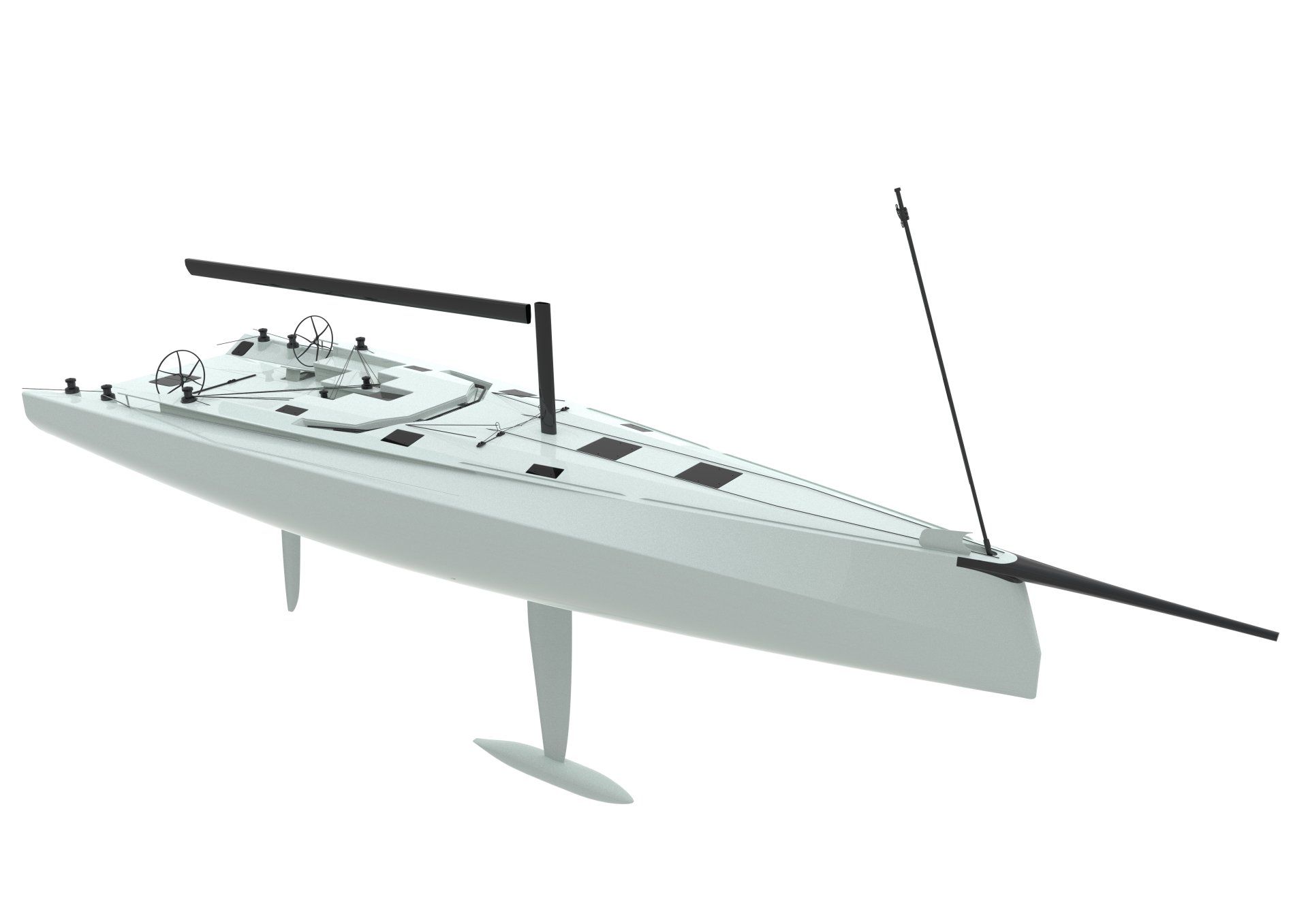

  • Deck plan of Neo 570c

    Slide title

    Write your caption here
    Button
  • Winches: 8
  • Deck Portlight: 12
  • Mast & Boom: Carbon HI MODULUS
  • Standing Rigging: Carbon fiber
  • Hidraulics: Cariboni
  • Rudder : 1 - 2 opt
  • Wheels: Double
Interior Versions
Neo 570c 2x2
2 Cabins & 2 Bathrooms
      • Berts: min 6 max 10
      • Cabins: 2
      • Bathrooms: 2 with showers
      • Kitchen : Induction 4 burners
      • Kitchen sink: Double
      • Oven: Combi electric + microwave 60cm
      • Bow Table: 10 persons
      • Wardrobes: 4
      • Conditioner: Yes
      • Water maker: 60lt/h

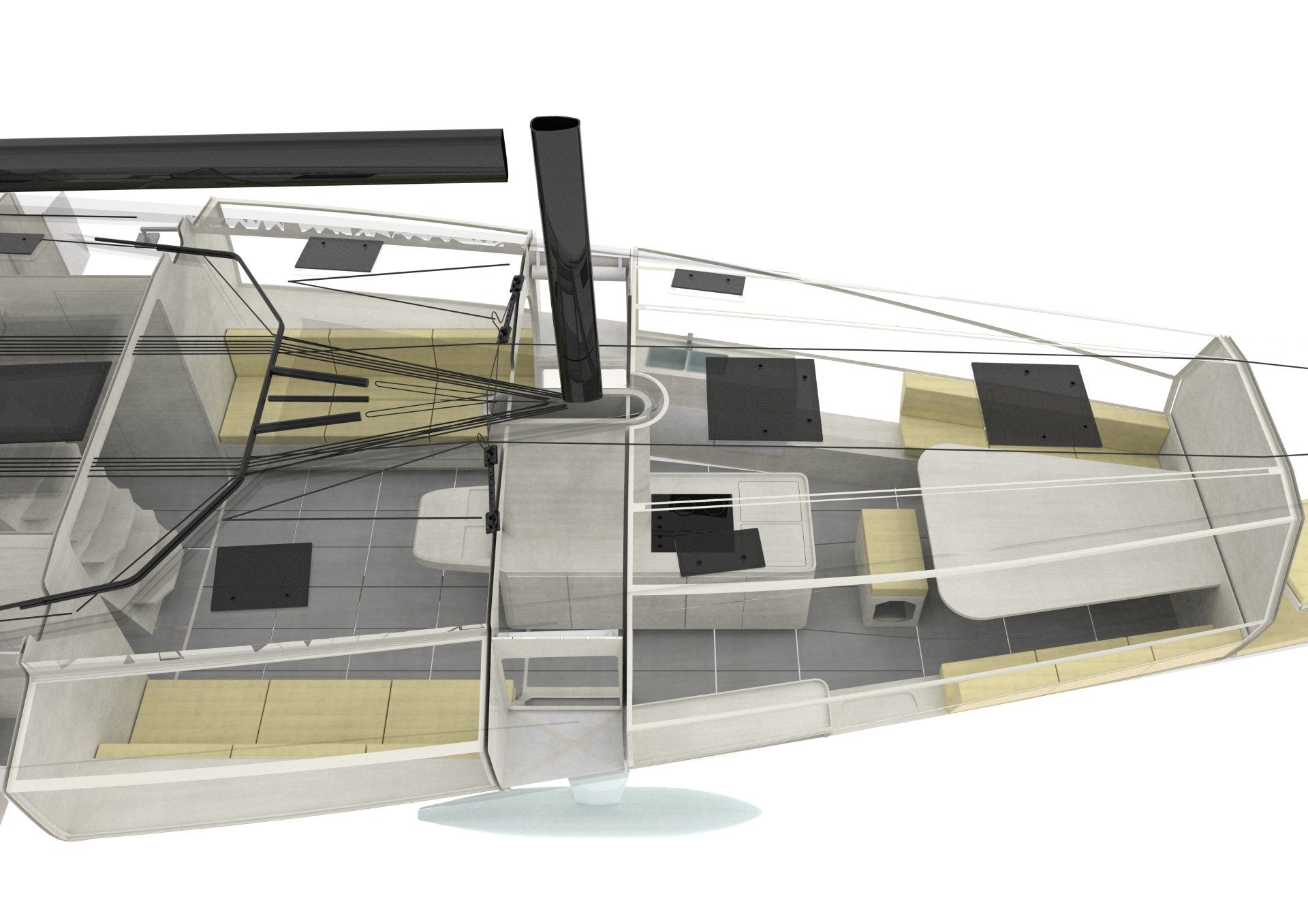

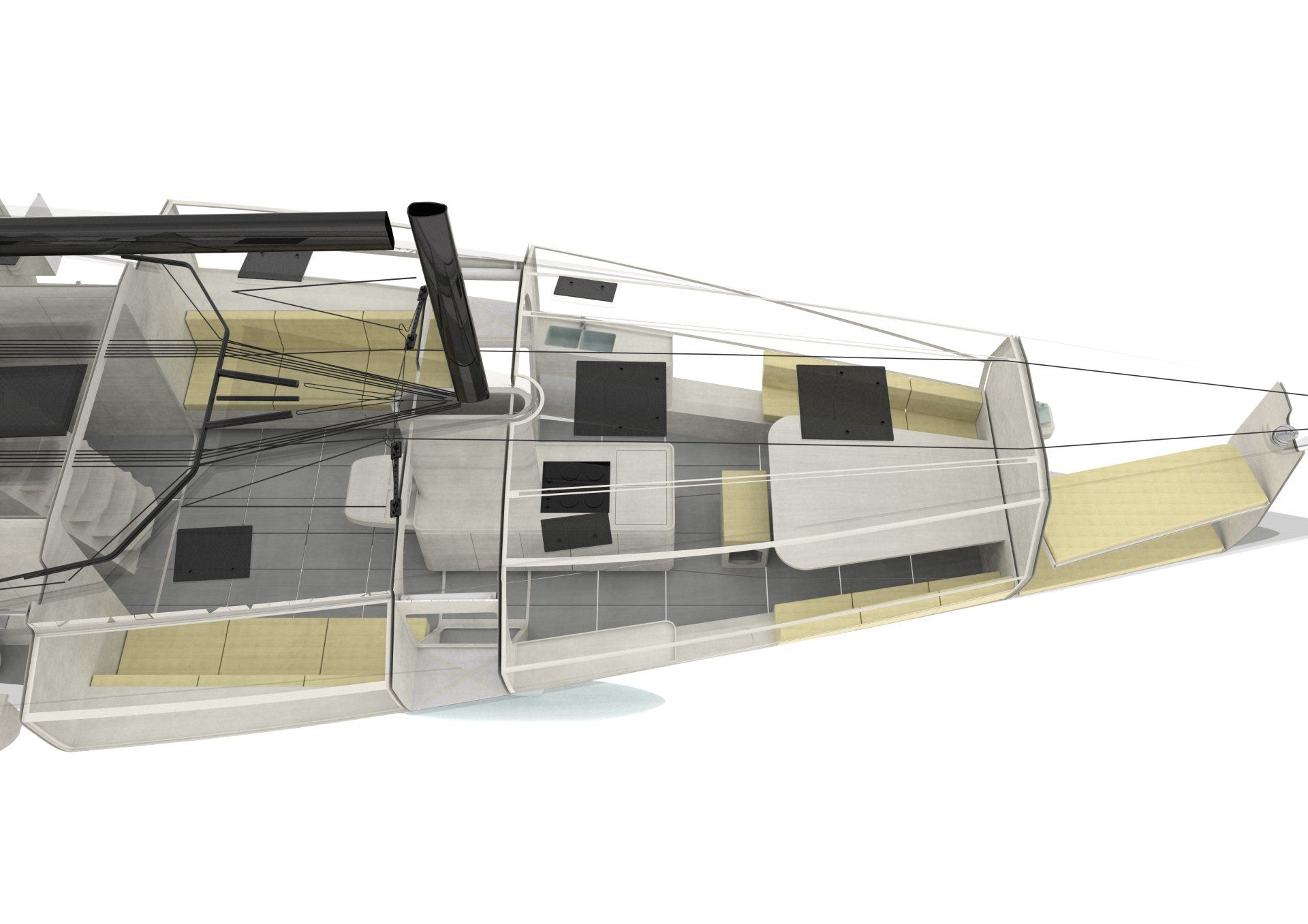

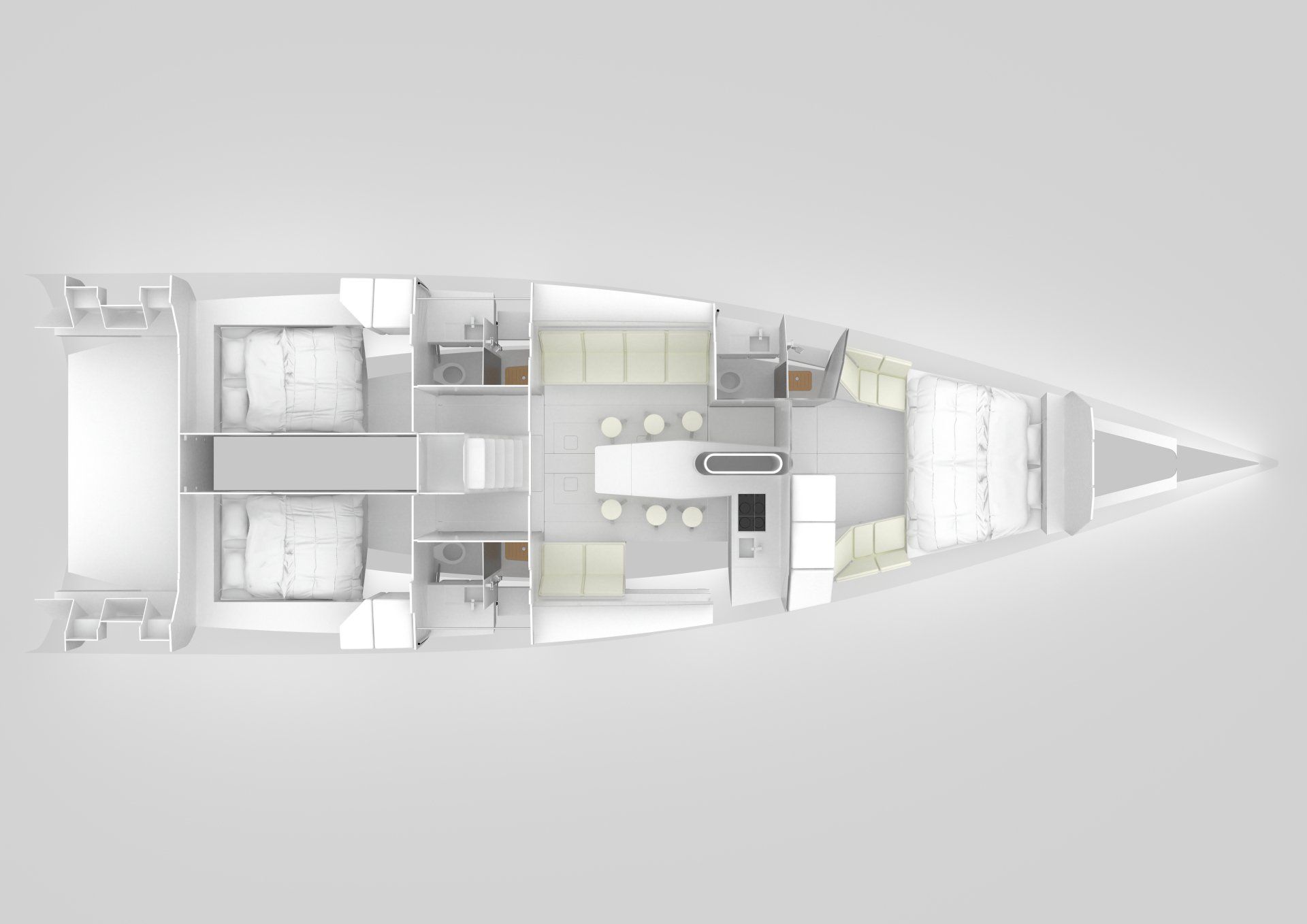

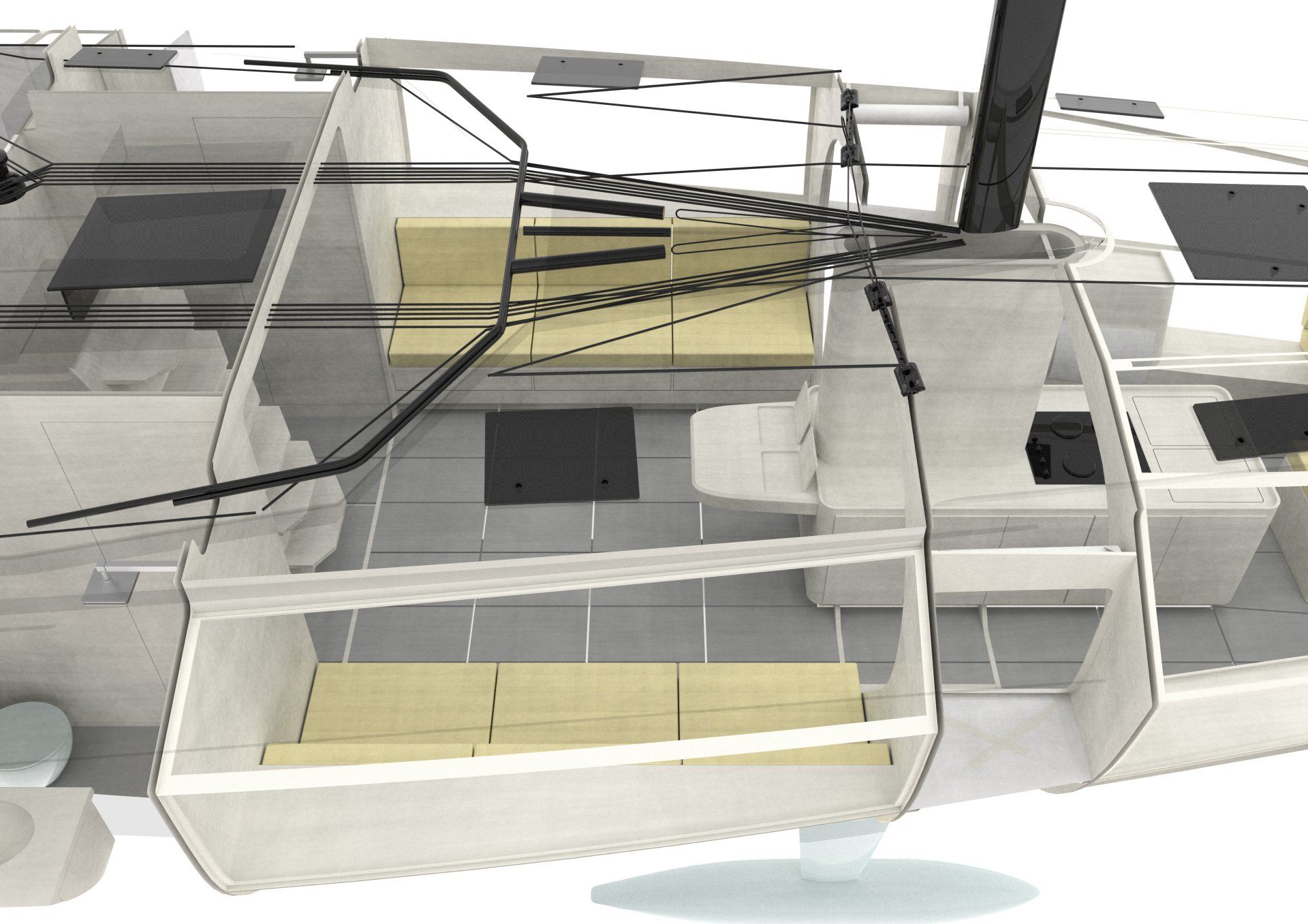

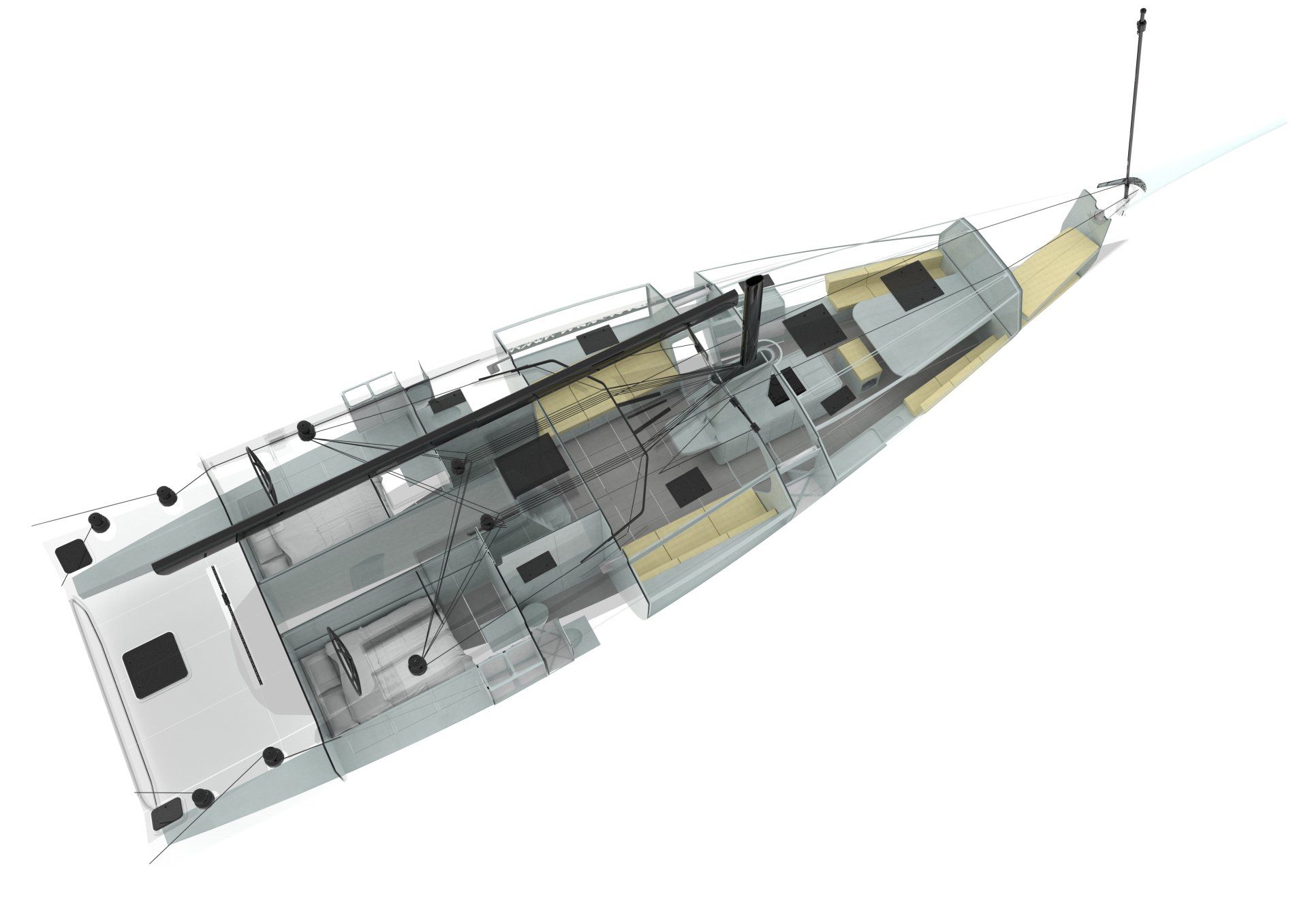

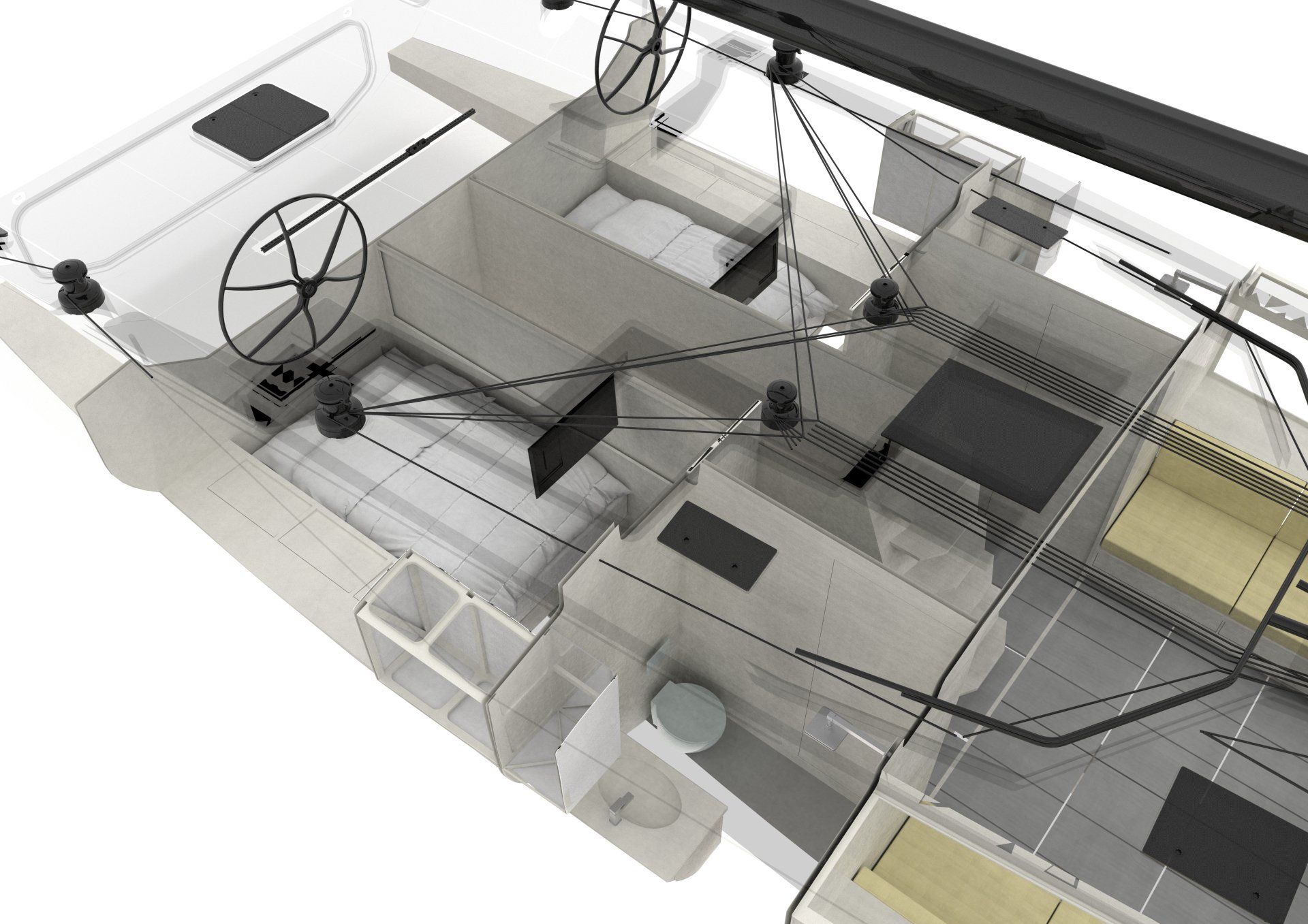

      Interior of NEO 570C
      Interior of NEO 570C

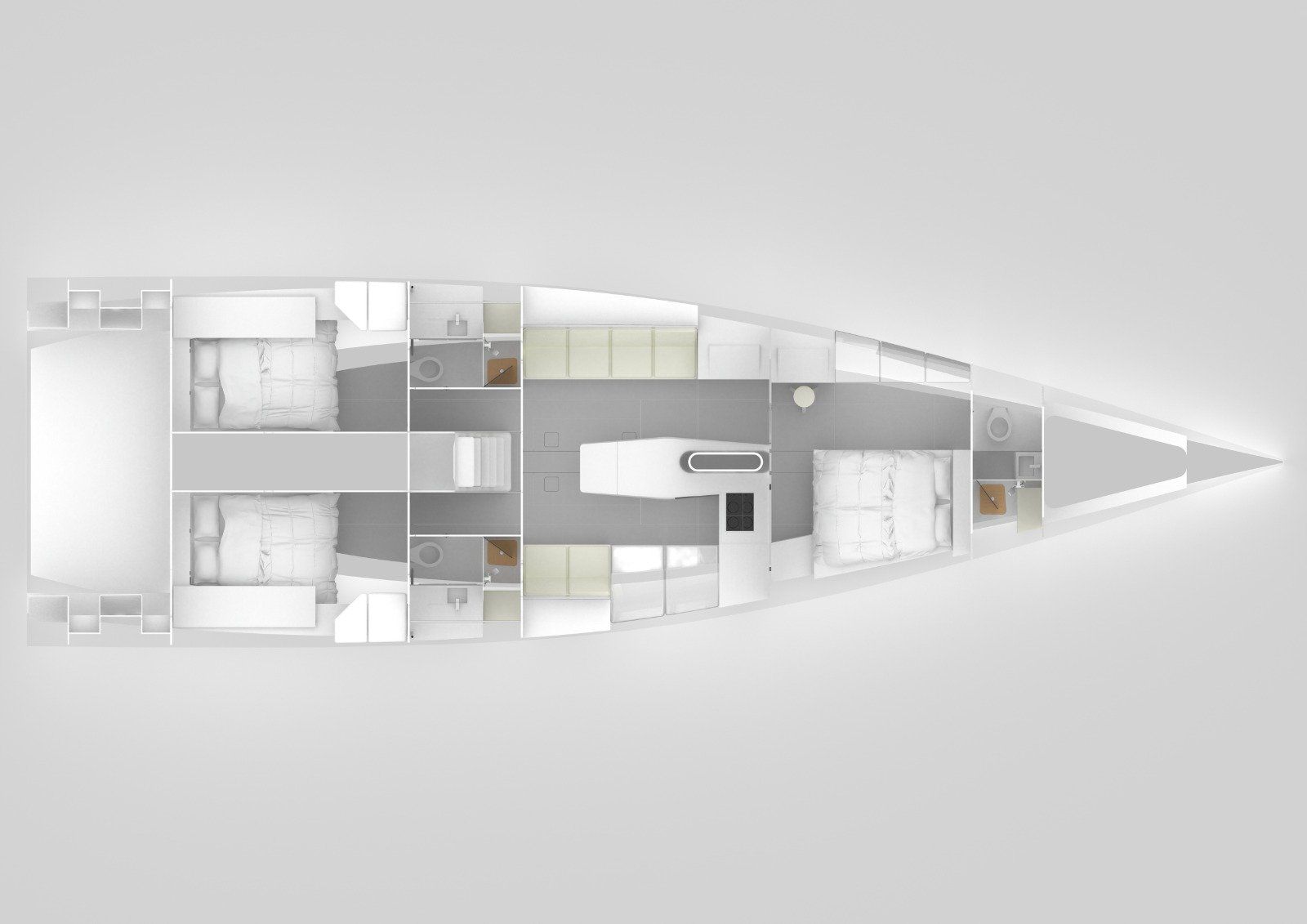

      Neo 570c 3X3 v2

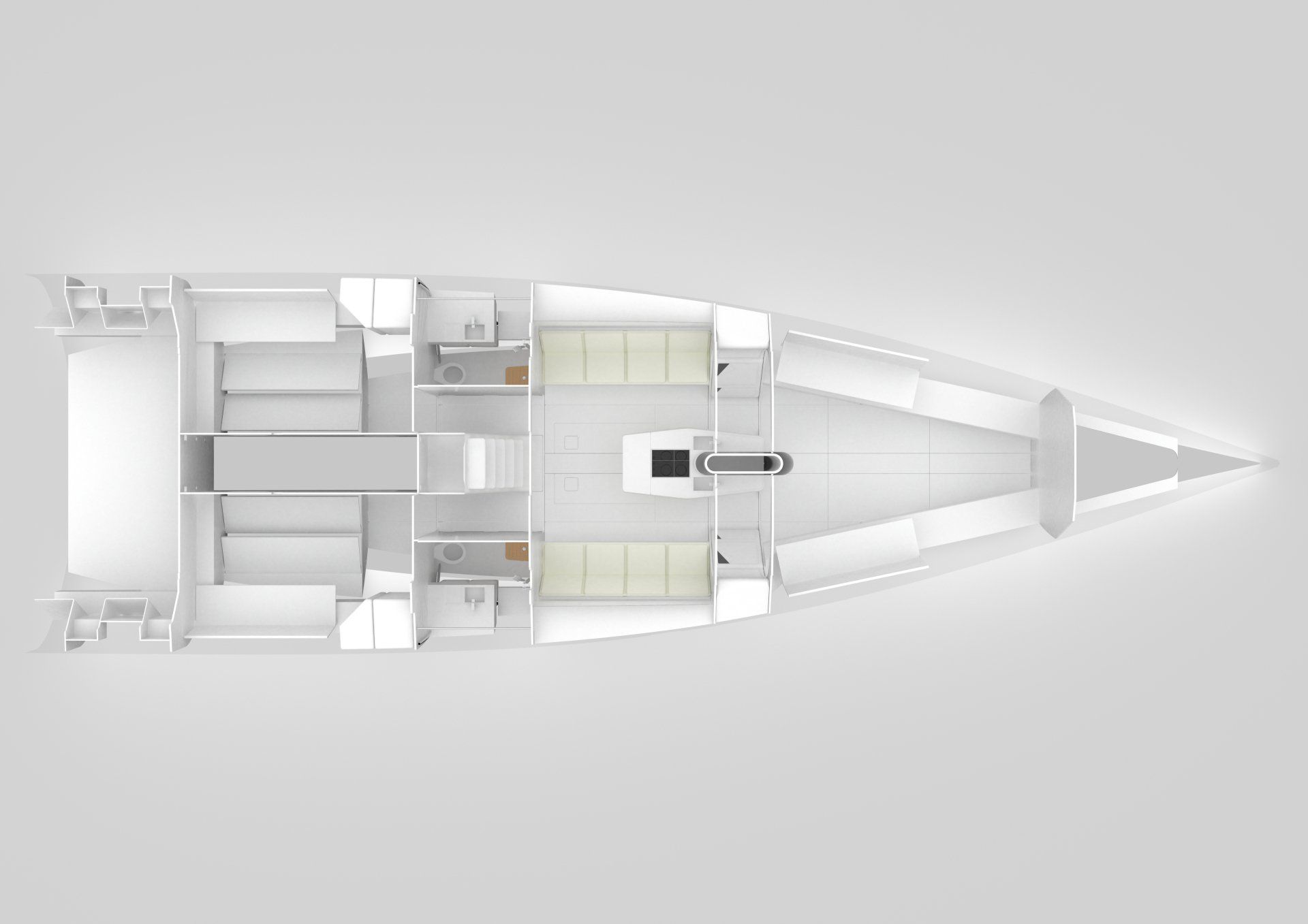

      Neo 570c 2x2 Race
      STATE OF THE ART FULL CARBON CONSTRUCTION

      STATE OF THE ART FULL CARBON CONSTRUCTION

      • Direct female mould
      • Prepreg Technology from Gurit
      • Epoxi resin cured at 70°
      • Multiaxial and unidirectional carbon fibers
      • A light and strong structure allows a light displacement yacht with 52% of the weight in the keel
      • Category A yacht engineered by "Ceccarelli yacht design and engineering"
