Neo 430 Roma

Neo 430 Roma

Neo 430 Roma 1
Neo 430 Roma 2
Neo 430 Roma 2

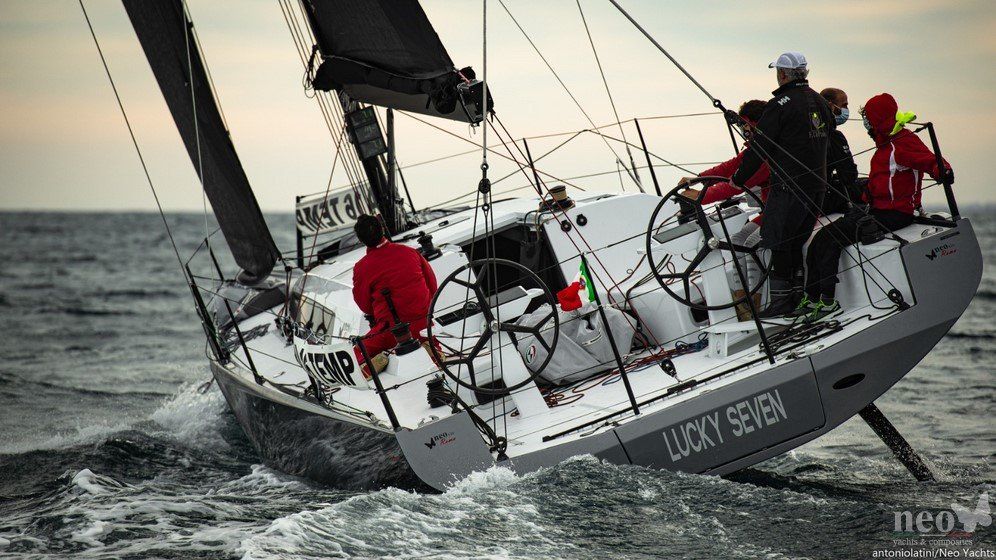

Neo 430 Roma 4

Measurements & Weight



  • Length (LOA): 13,06 mt
  • Length (LWL): 11,80 m
  • Beam (Bmax): 4,06 mt
  • Draft: 3 mt / 1,6 mt (Lifting keel)
  • Displacement: 5700kg
  • Keel weight: 2500 kg

Water & Fuel



  • Water Tanks: 200 lt
  • Fuel Tanks: 100 lt



Engine / Omologation / Crew

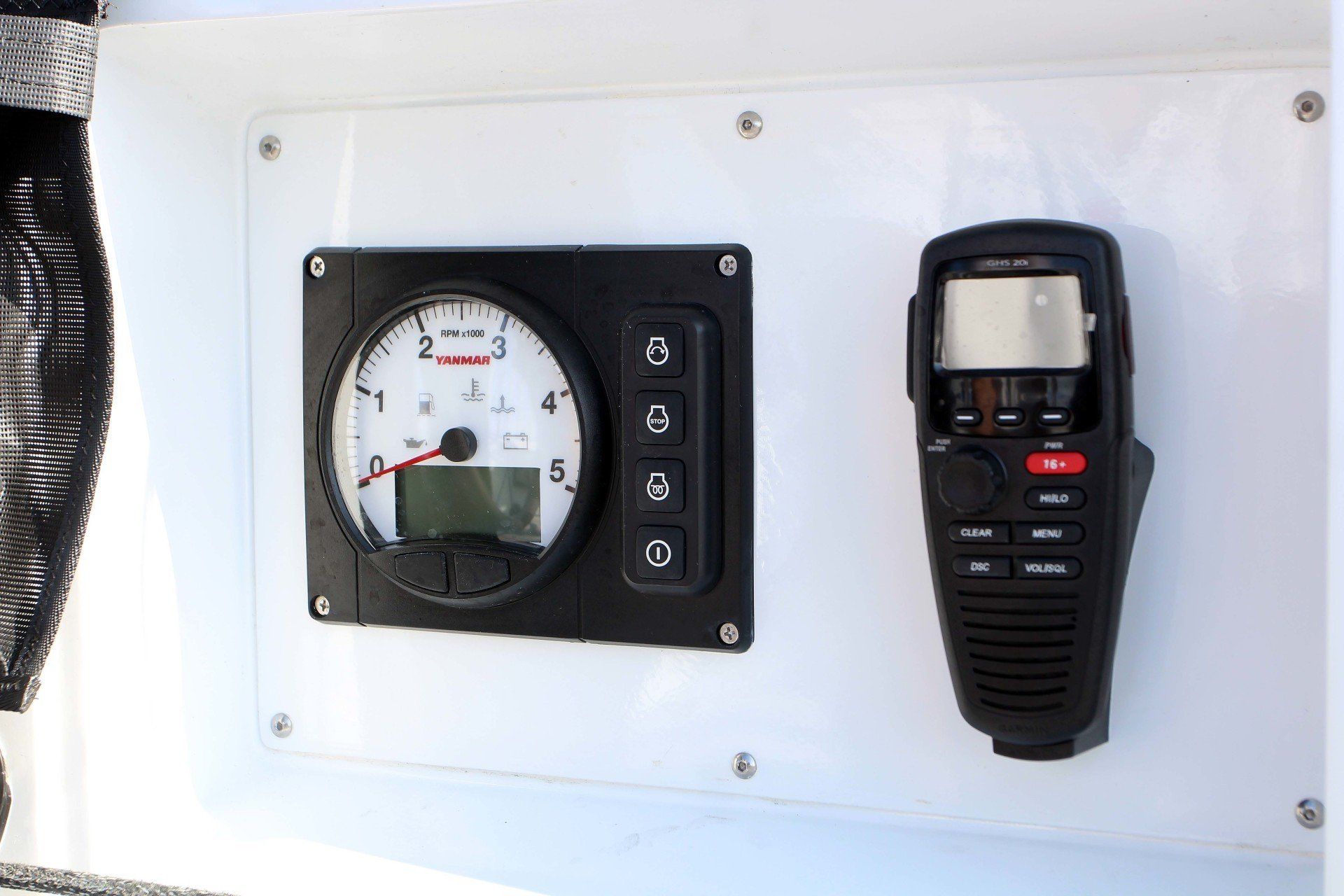

  •  Engine: Saildrive 30 hp
  •  CE Category: A ‐ Ocean
  • Crew Max: 10

Sail Plan



  • Sail Area Upwind: 105 m2

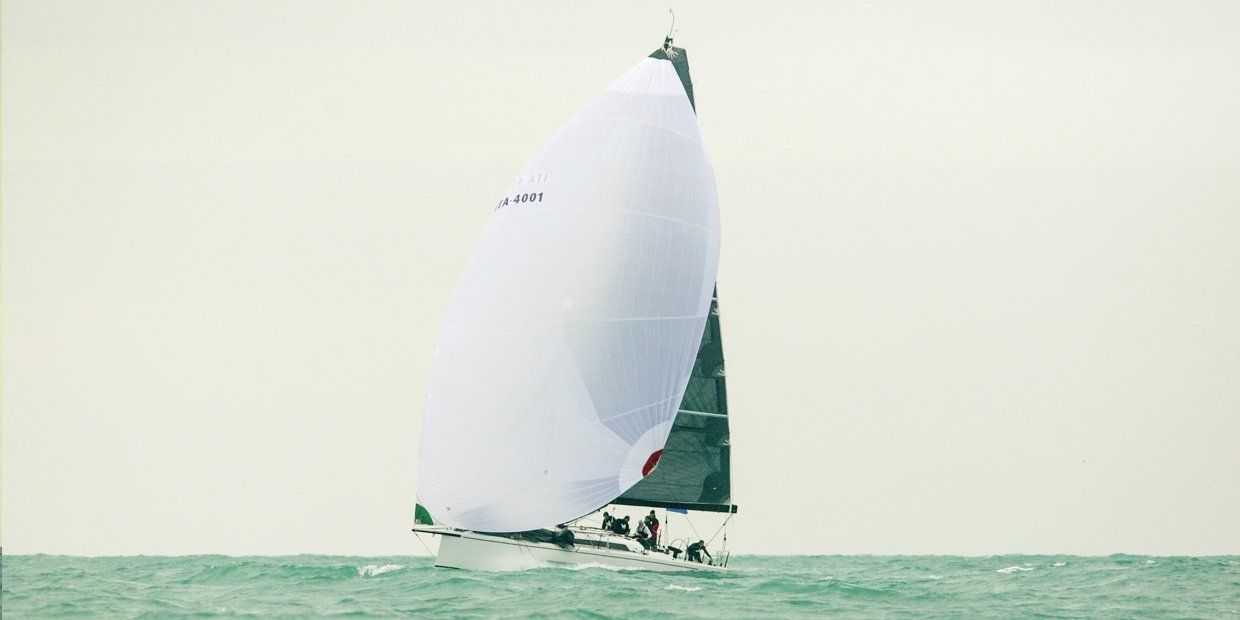

  • Sail Area Downwind (Gennaker): 230 m2
  • Main Sail Area: 60 m2
  • Jib Area: 45 m2
  • Asymmetric Spi Area:170 m2
  • Concept: Neo Yachts & Composites
  • Builder: Neo Yachts & Composites
  • Designer: Ceccarelli Yacht Design

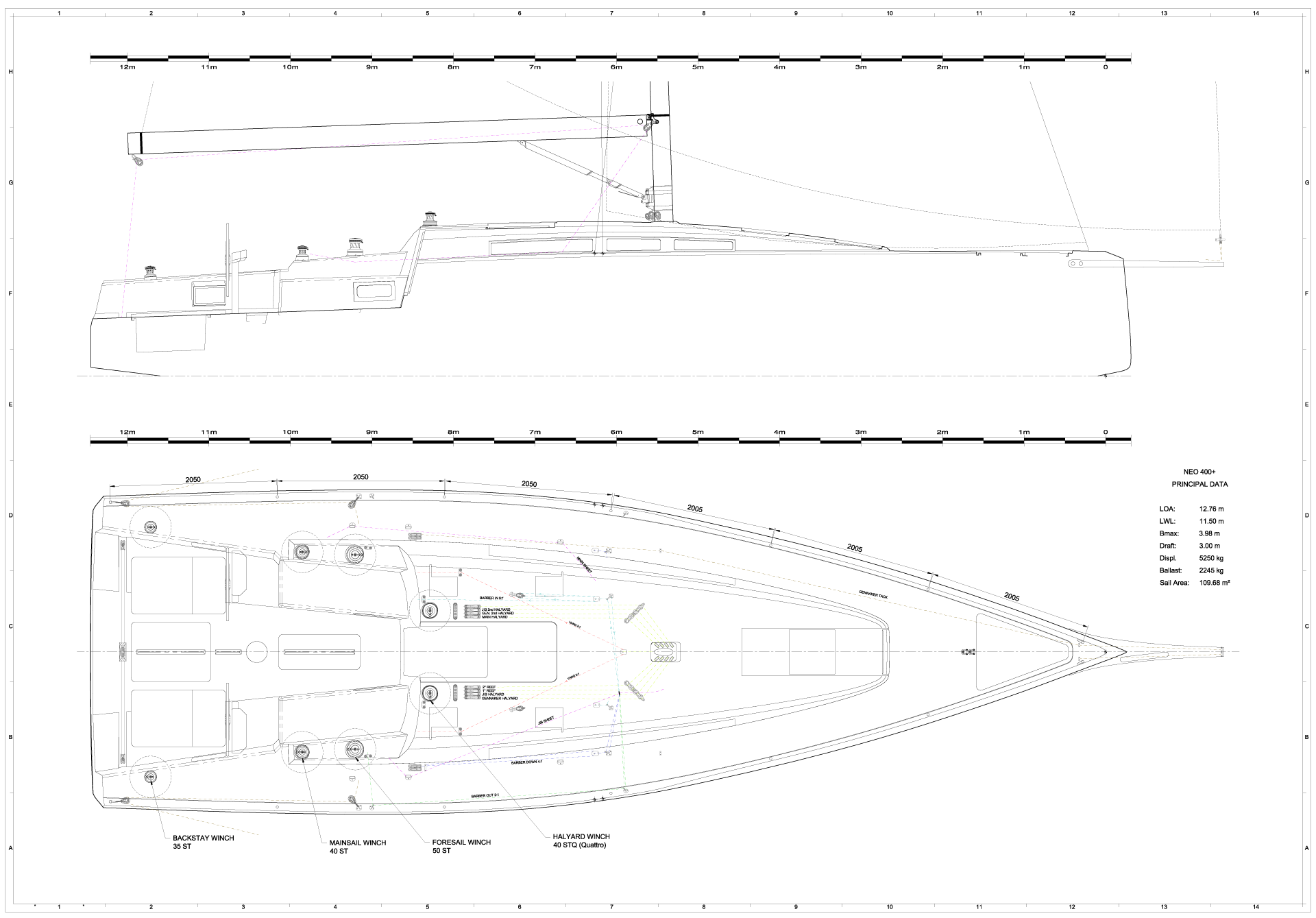

Deck Plan

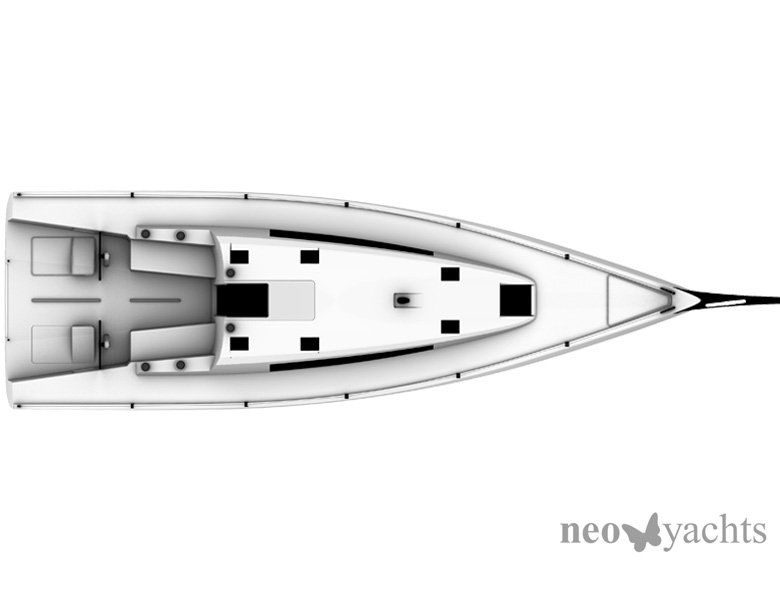

  • Neo 430 Roma Deck Plan 1

    Slide title

    Write your caption here
    Button
  • Neo 430 Roma Deck Plan 2

    Slide title

    Write your caption here
    Button

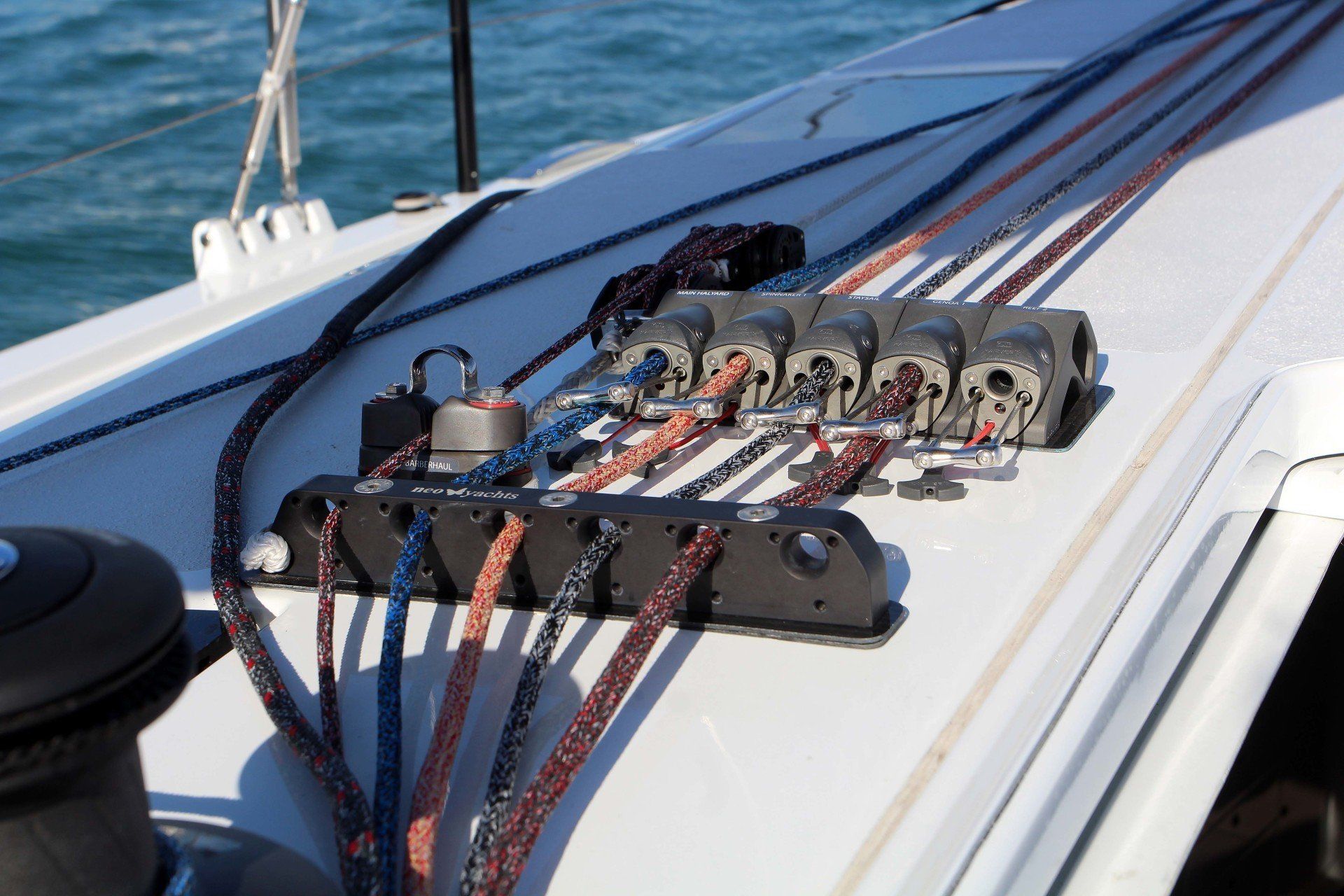

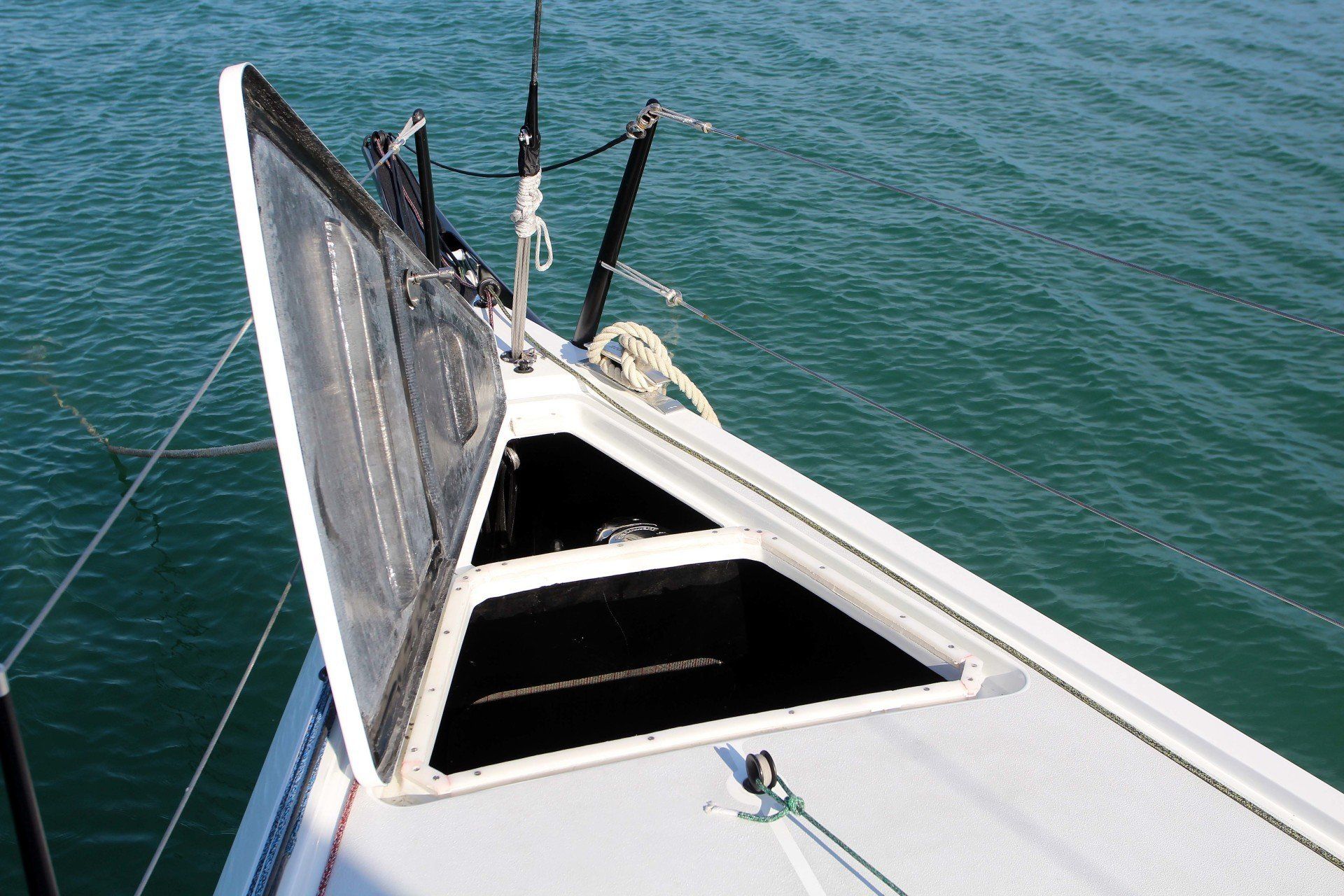

  • A deck plan designed by people who know what racing means

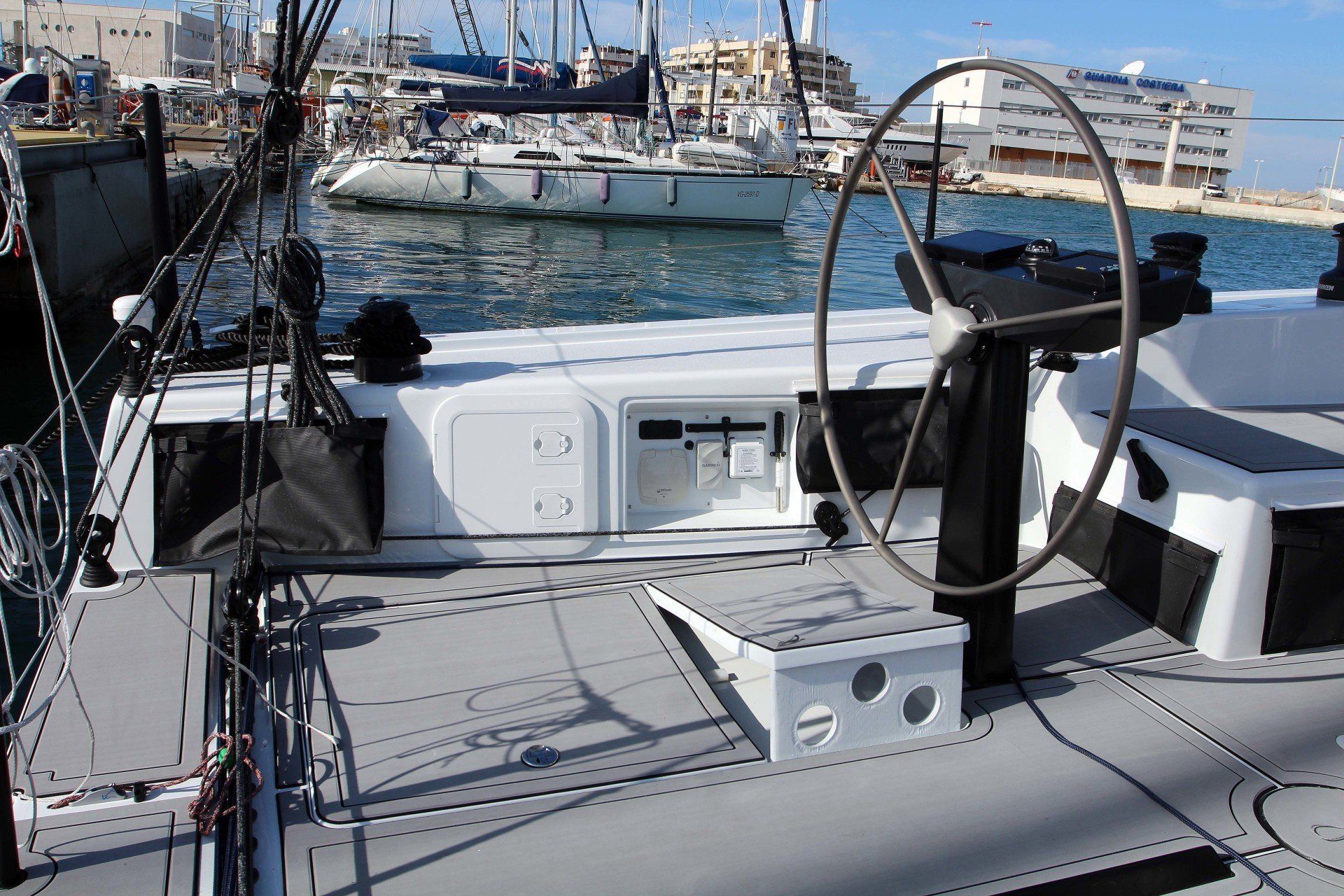

  • A wide cockpit comfortable while cruising, ergonomic while racing

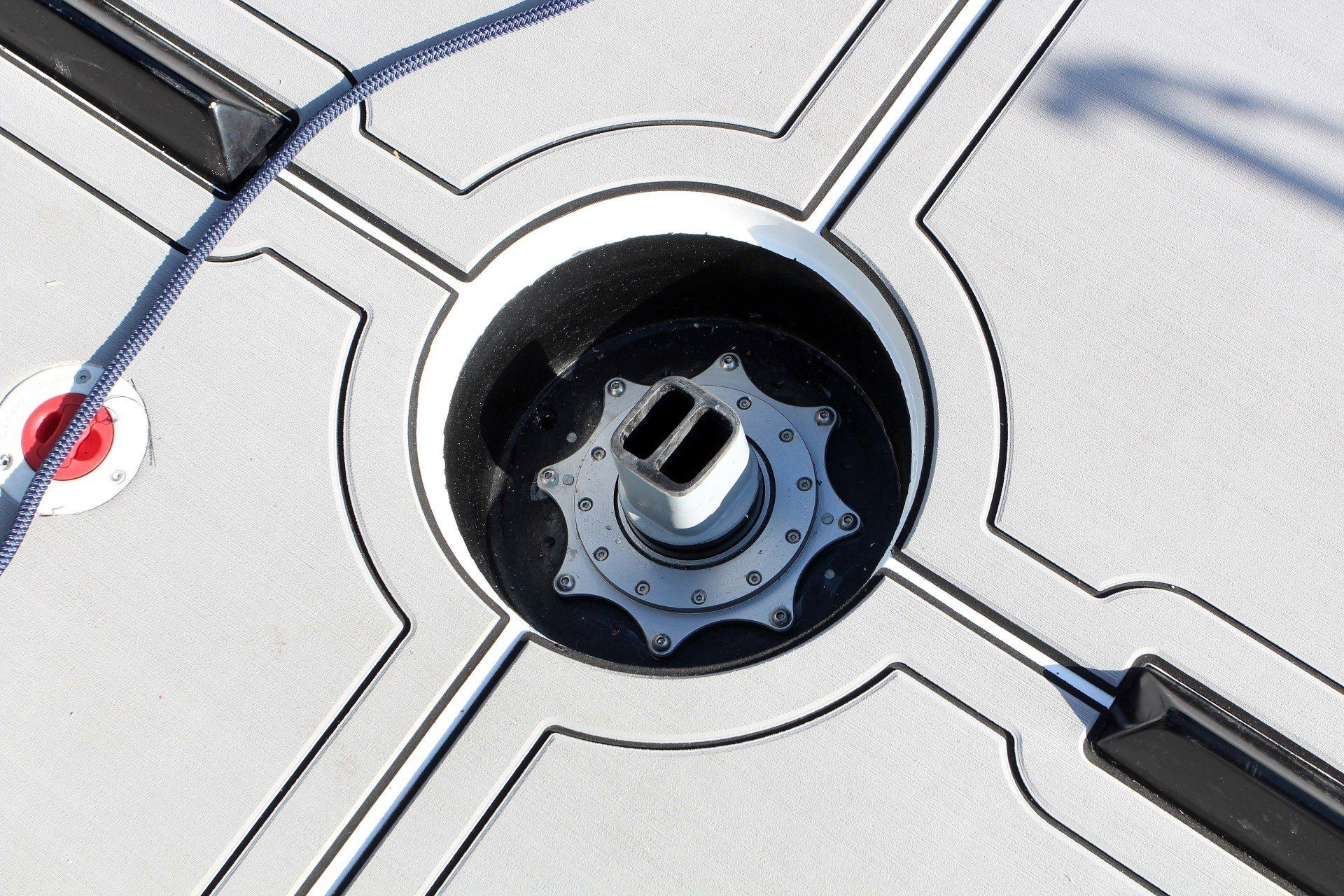

  • On deck mast, on deck maneuvers, make Neo 430 safe and dry
  • Waterproof bulkheads give Neo serious offshore sailing attitude
  • Low profile cabin is well integrated in a modern design concept
  • Flush, curves, continuous windows
  • Reverse bow emphasizes virtual water length keeping boat dry
  • Concave sheerline for beam effect
  • Composite stanchions and pulpits maintain outline clean and light
Versions

 All versions of neo430 Roma can be set up in the Race or Cruise variants

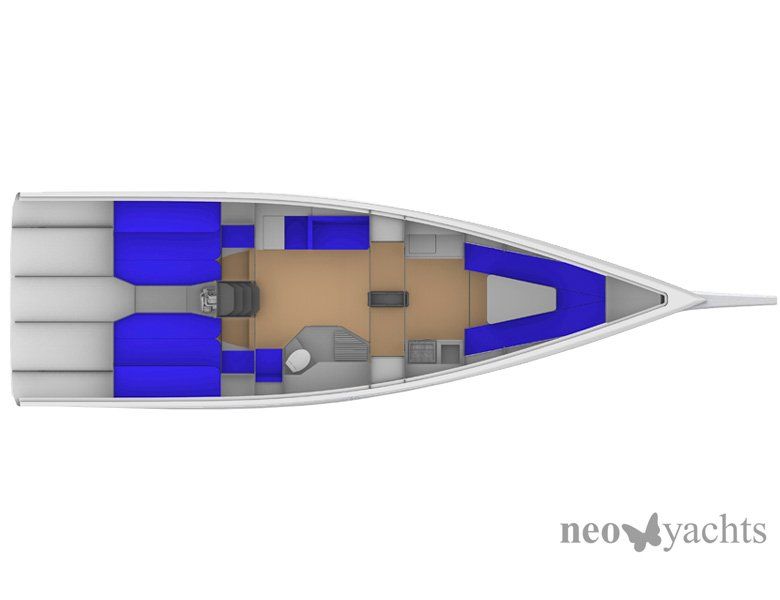

Loft

The Loft Version



  • An innovative solution for maximum living space under sail
  • Long sailbags can be stored on the side of the centerboard case

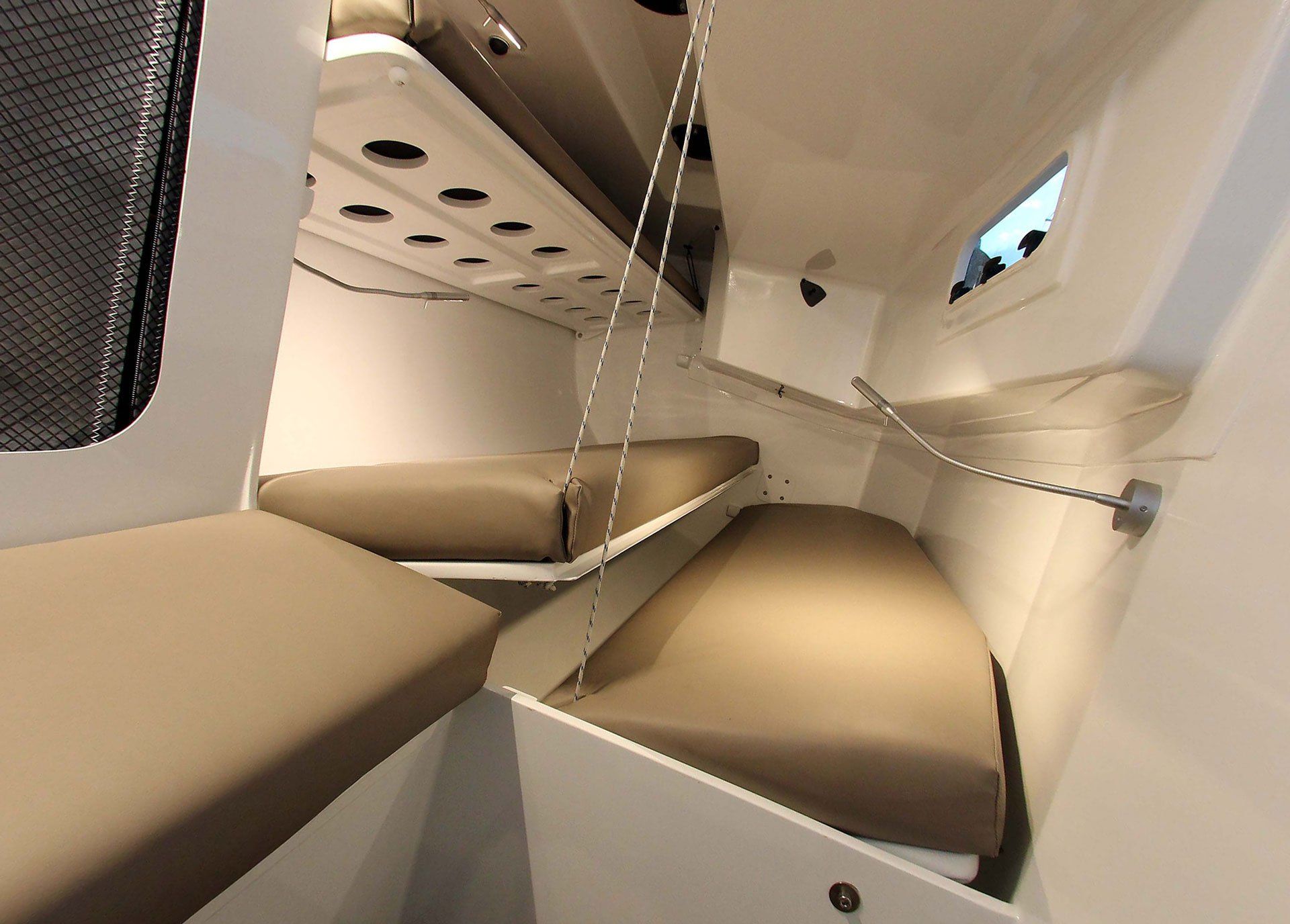

  • 3 pivoting beds allow comfortable sleep to the windward side for max stability when sailing in strong wind
  • The front dinette allows great dining space for 10 people
  • It is ideal when dropping sails during the race
  • It can be transformed in a comfortable double bed big cabin
  • navstation to be reversible to sofa
Loft

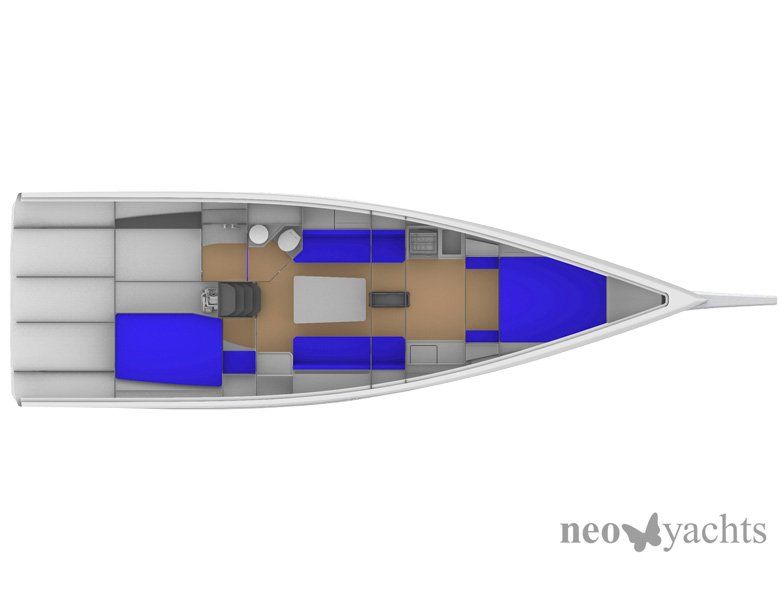

Supercruise
Supercruise

The Comfortable Version

  • 1 front owner cabin
  • 1 large guest cabin
  • 1 bathroom
  • 1 large separate shower
  • 1 extra large service room/locker

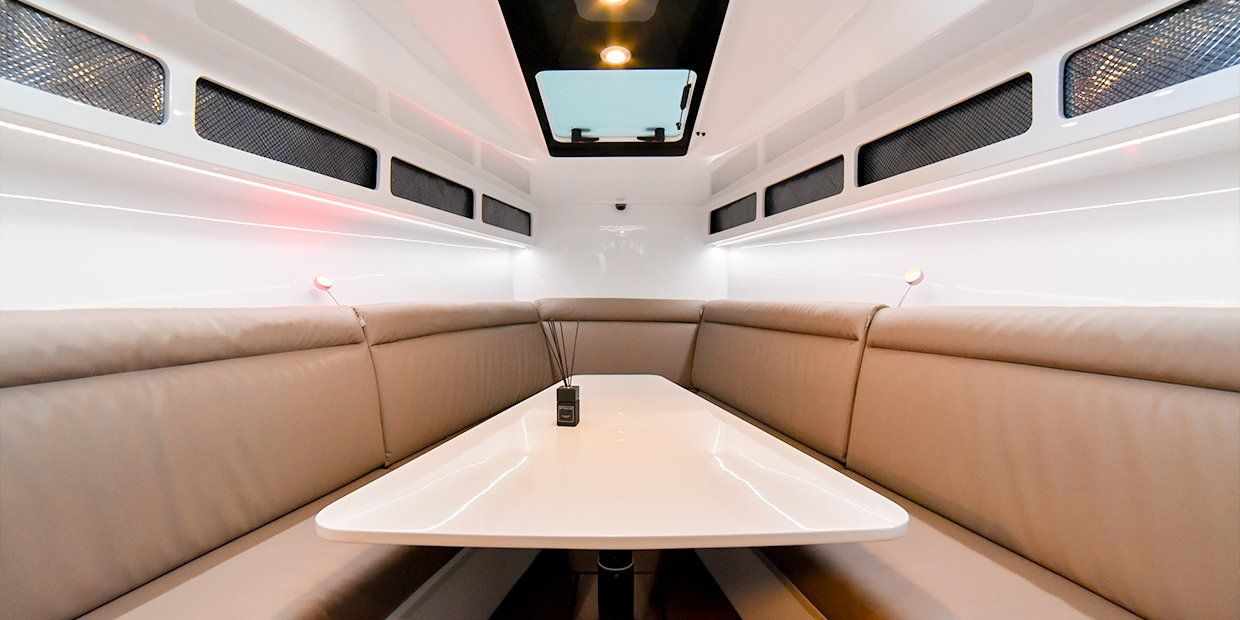

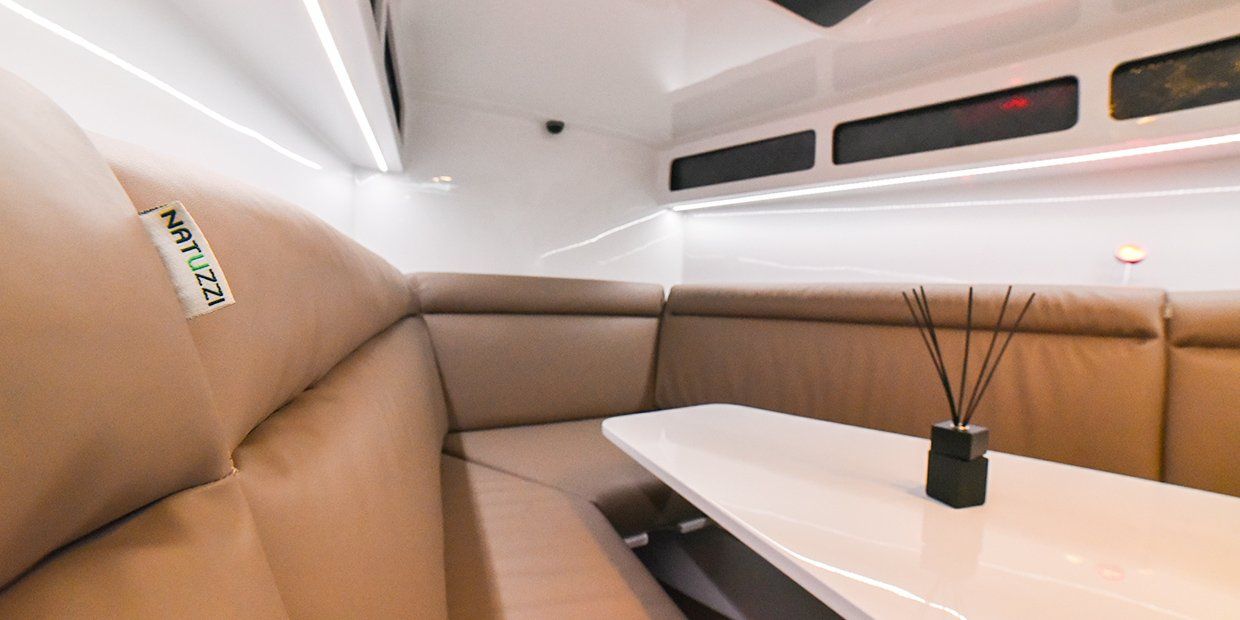

  • 1 central dinette

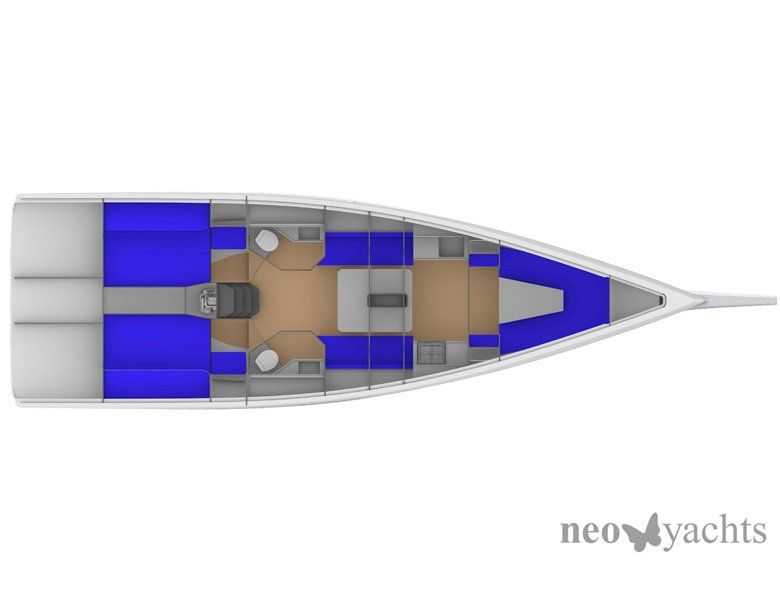

Model S

The Fast Cruiser Version

  • 1 front owner cabin
  • 2 large guest cabin
  • 1 large bathrooms with shower
  • 1 central dinette
  • navstation to be reversible to sofa



Model S

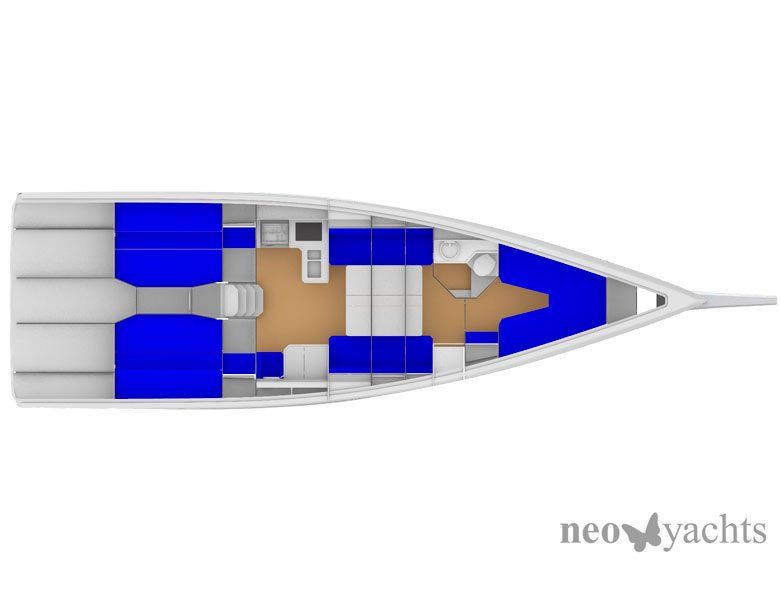

V Bed
V Bed

Convertible Owner Cabin

  • 1 large owner/Vbed front cabin
  • 2 large guest cabin
  • 1 bathroom
  • 1 central dinette with 2 sofas convertible in beds

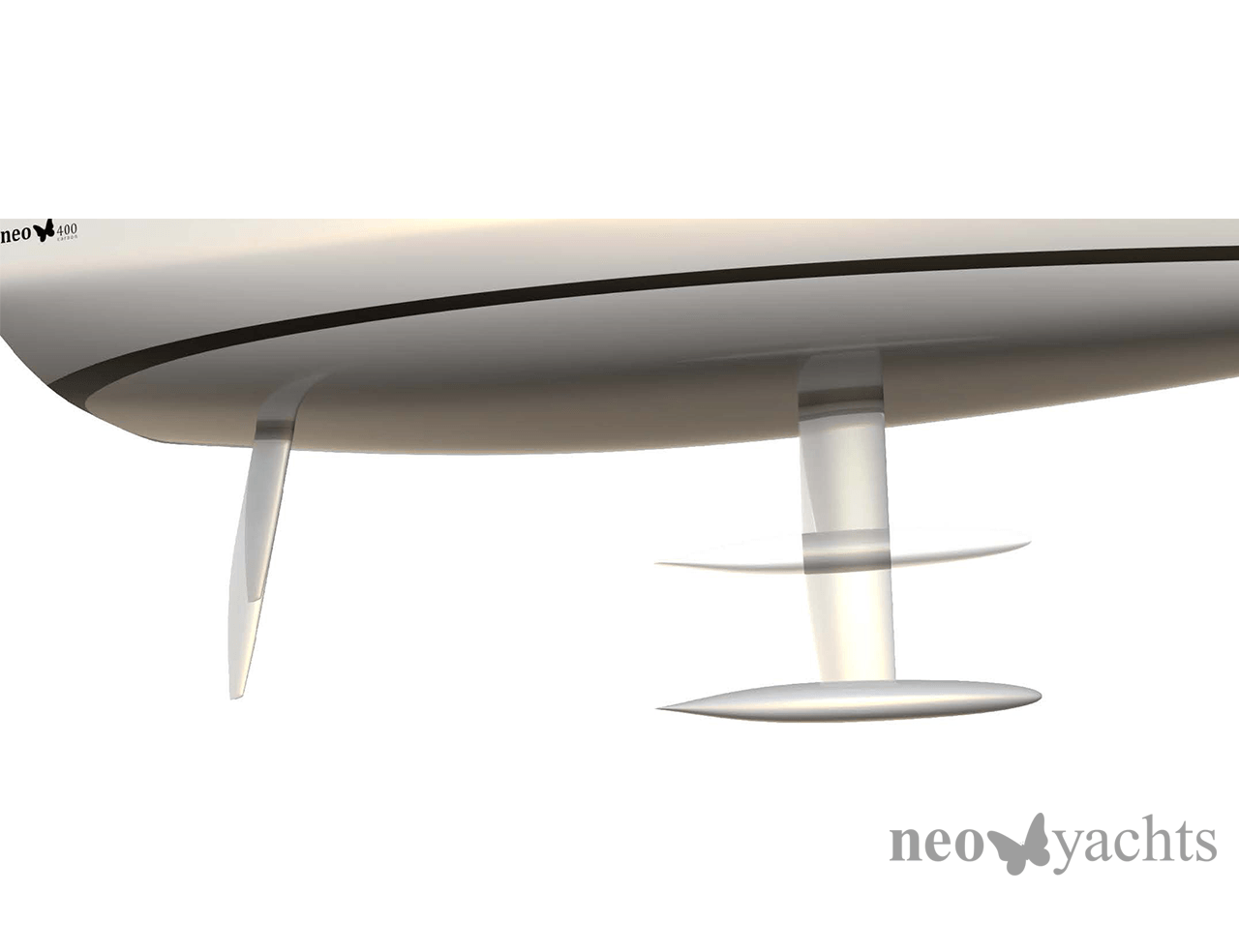

Solutions
Smart Solution

Smart Solution

  • Fast yacht need deep draft for stability and upwind sailing ability
  • Cruising yachts need low draft for easy mooring
  • Rudder and Keel of Neo 430 are retractable without the use of hydraulic systems (OPTIONAL)
  • This system will allow fast split from ORCì to IRC keel and rudder
  • Speed and comfort while sailing and easy anchoring also in shallow waters
  • Weldox keel fin and lead bulb all CNC machined to perfection
  • Carbon hi aspect ratio rudder to improve upwind ability

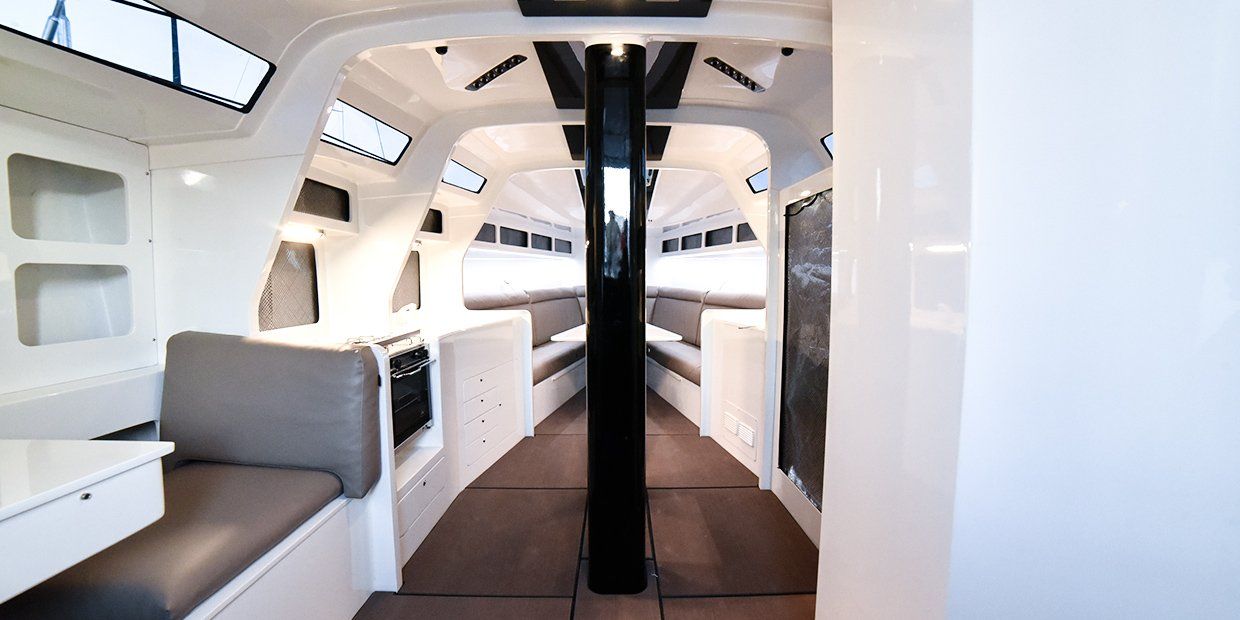

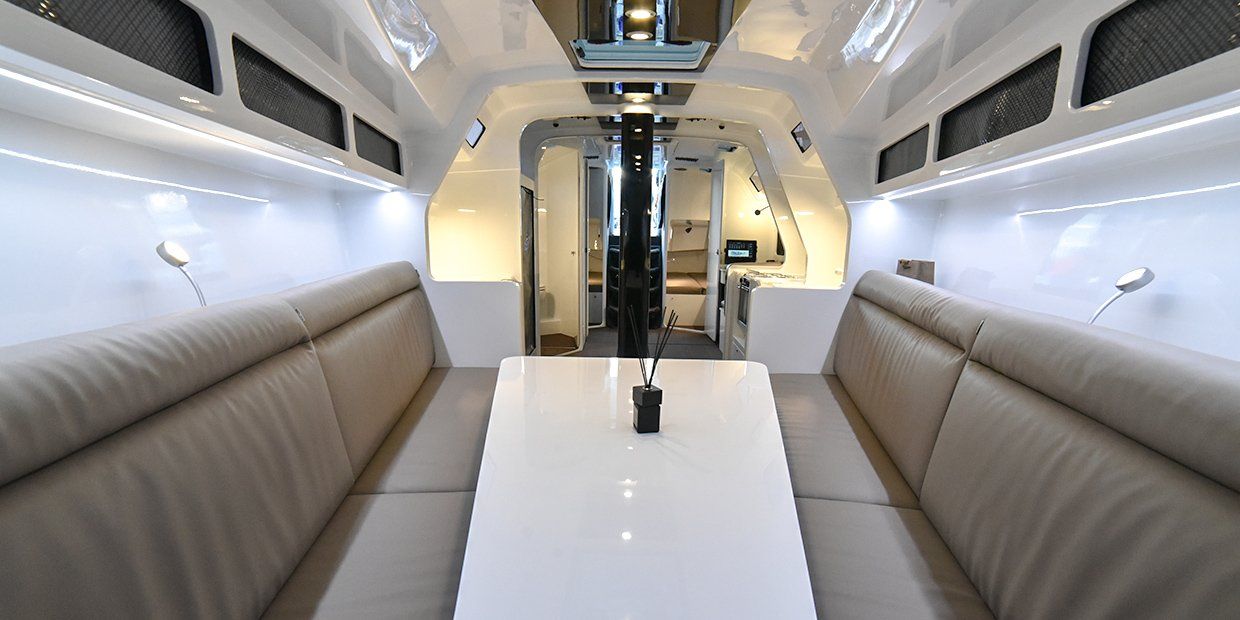

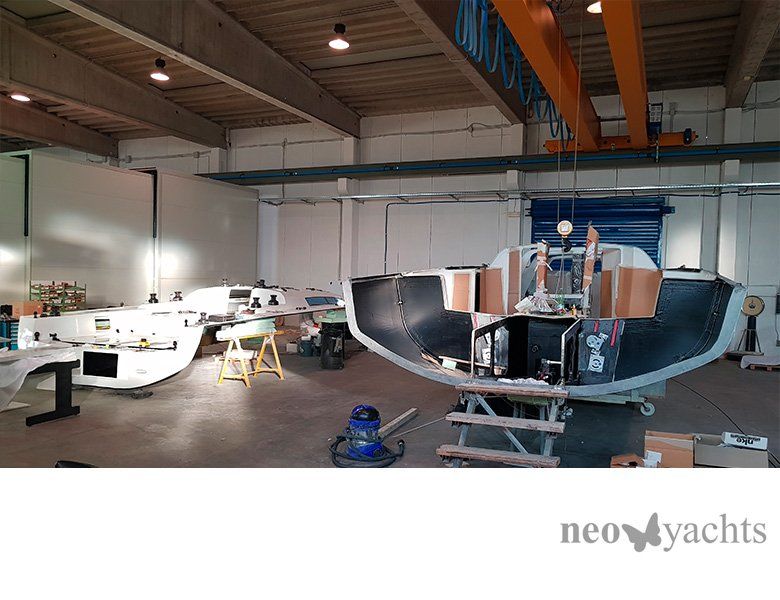

Structural Interiors

More Space Inside Than A Bigger Boat



  • Structural Interiors give our boats high structural rigidity with less weight and larger spaces inside

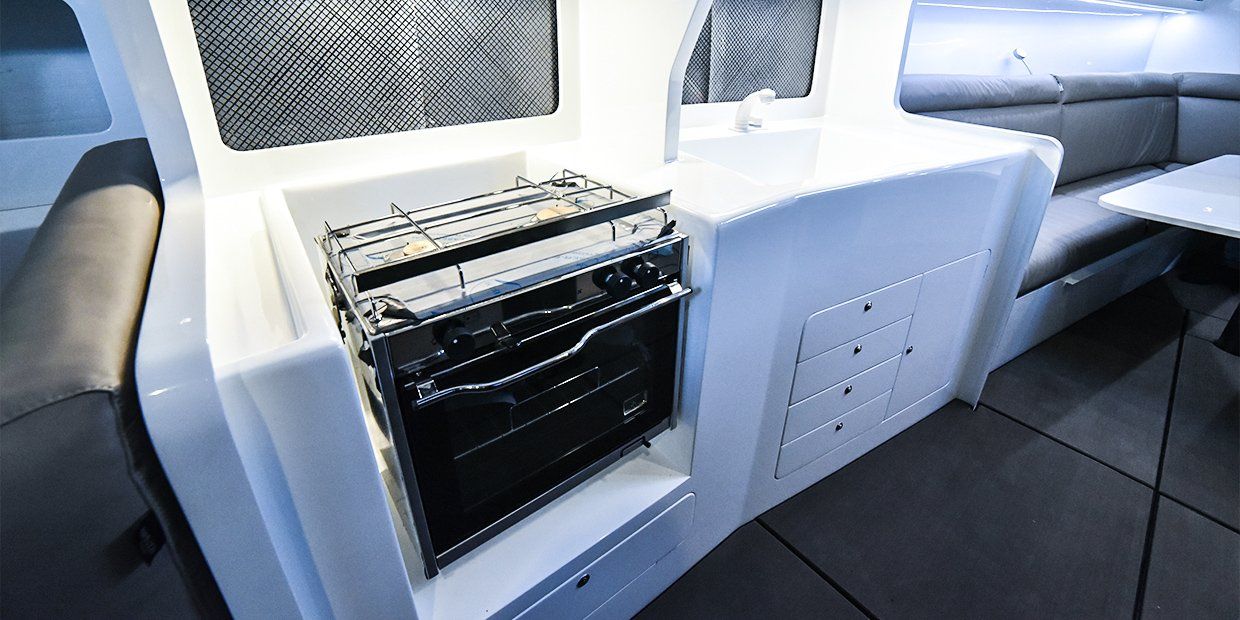

Composite Interiors

  • Modern
  • Efficient
  • Easy to clean
  • Long lasting
Structural Interiors
Full Carbon Construction
STATE OF THE ART FULL CARBON CONSTRUCTION

STATE OF THE ART FULL CARBON CONSTRUCTION

  • Direct female mould
  • Prepreg Technology from Gurit
  • Epoxi resin cured at 70°
  • Multiaxial and unidirectional carbon fibers
  • A light and strong structure allows a light displacement yacht with 52% of the weight in the keel
  • Category A yacht engineered by "Ceccarelli yacht design and engineering"



Please contact us for further information.
