Preliminary Data



  • Length (LOA ): 15,75 mt
  • Length (LWL): 14,30 mt
  • Beam (Bmax): 4,40 mt
  • Draft:  3,10 mt
  • Displacement (ORC): 7300 kg
  • Displacement (Max): 9200 kg
  • Ballast: 2445 kg
  • Keel: 3250 kg
  • Canting Keel: ±40°




Water & Fuel



  • Water Tanks: 2x 100 lt
  • Fuel Tanks: 160 lt
  • Black Water: 2x60 lt



Engine / Omologation / Crew



  • Engine: Saildrive 55 hp
  • CE Category: A ‐ Ocean
  • Crew Max: 10

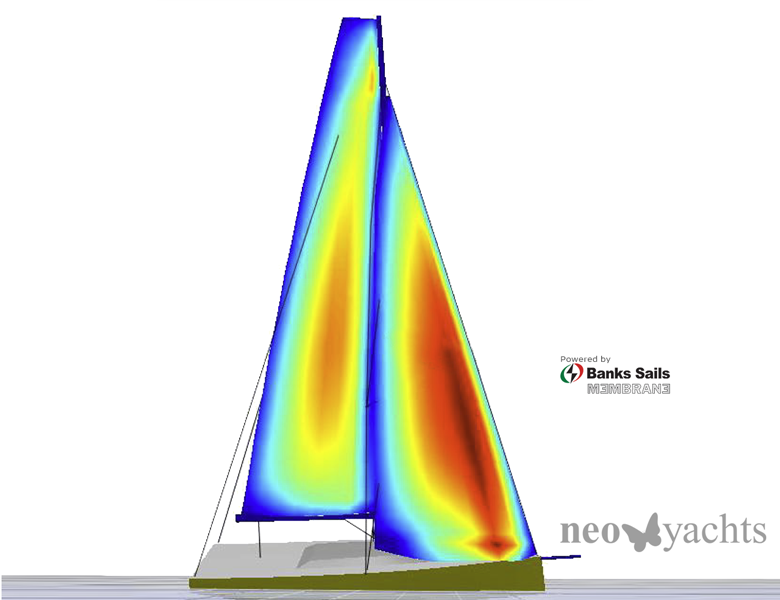

Sail Plan



  • Sail Area Upwind: 138,8 m2
  • Sail Area Downwind: 294,5 m2
  • Main Area: 79,5 m2
  • Jib Area: 59,3 m2
  • Asymmetric Spi Area: 215,0 m2
  • Builder: Neo Yachts & Composites
  • Designer: Ceccarelli Yacht Design

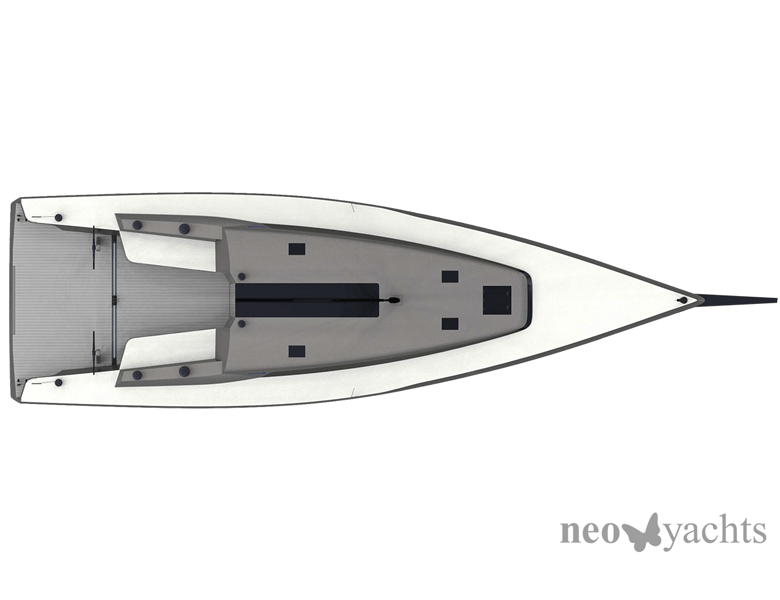

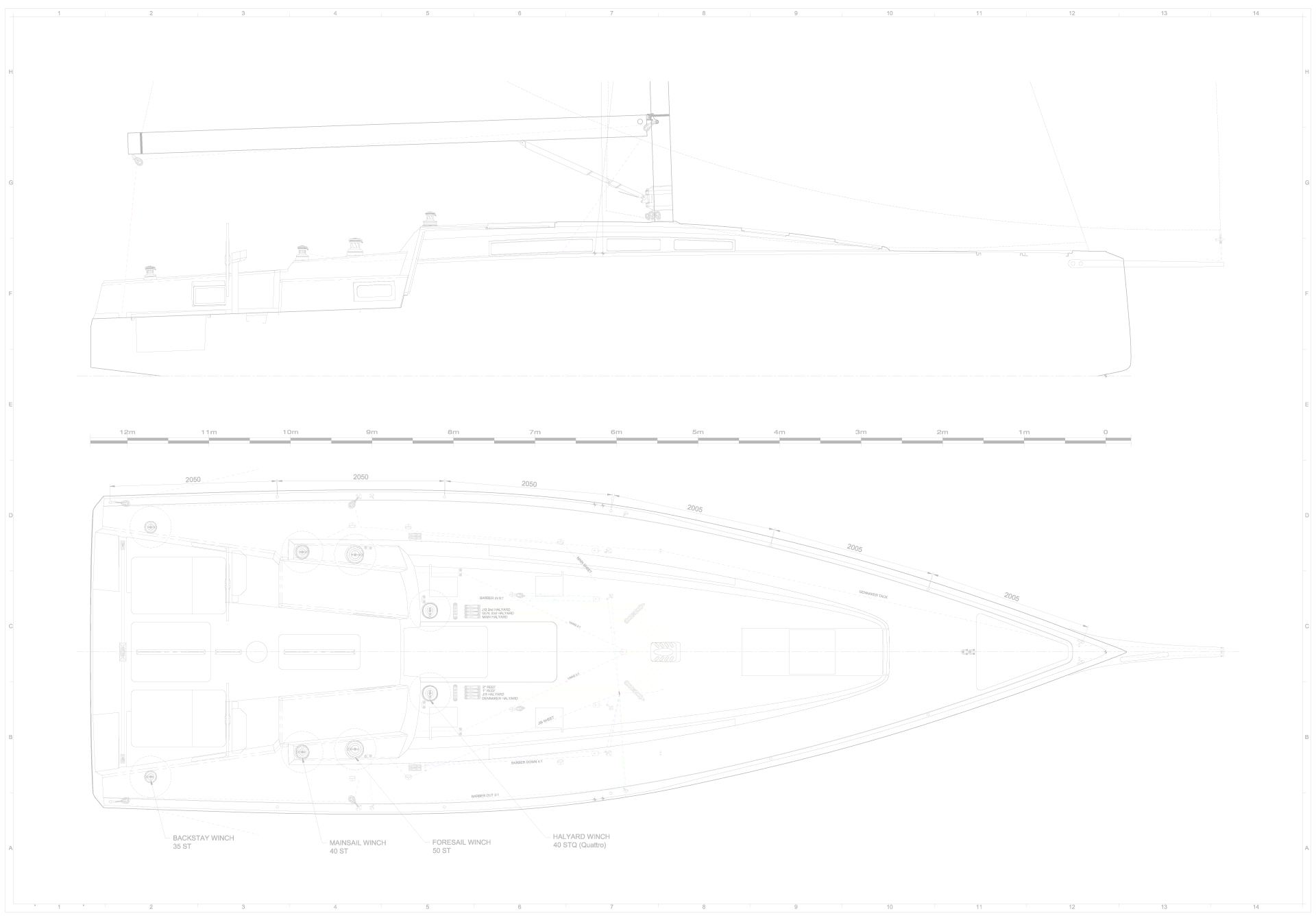

Deck Plan
  • Horizontal viwe of Neo 470

    Slide title

    Write your caption here
    Button

NEXT GENERATION BOAT

  • Deck plan for short handed crew
  • Canting keel up to 40°
  • Single daggerboard
  • Single rudder
  • All carbon construction (hull, deck, mast and appendages)
  • Full interior with 3 cabins and 2 heads
  • Luxury interior finishing (wood veneer, carbon look and gloss paint)
  • Electric winches and push button controls
  • Race electronics
  • IRC and ORC optimized





Versions
Luxury
Cruise/Race
      •     Full Interior
      •     3 big double cabin
      •     2 Heads
      •     2 Bathrooms
      •     Possible Finishing wood veneer, carbon look and gloss paint

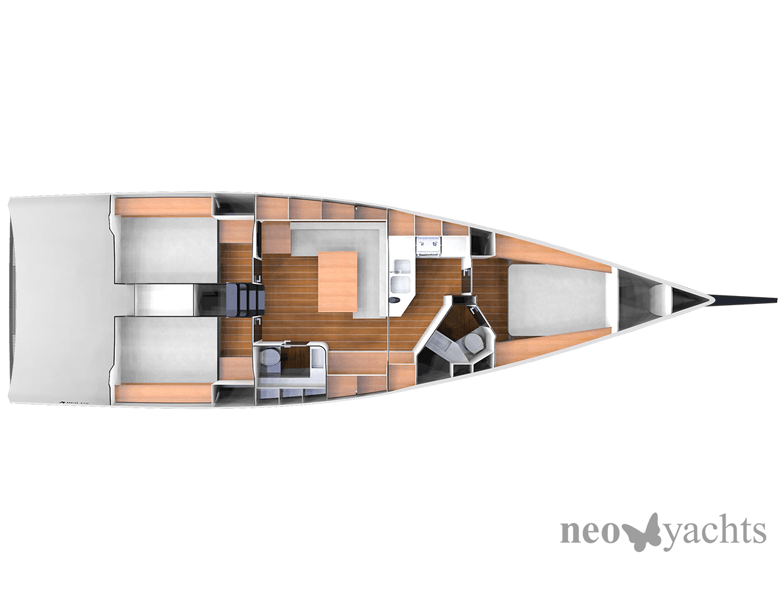

      Interior of Neo 470
       State of the Art Full Carbon Construction
      State of the art full Carbon Fiber Construction
      • Direct female mould
      • Prepreg Technology from Gurit
      • Epoxi resin cured at 70°
      • Multiaxial and unidirectional carbon fibers
      • A light and strong structure allows a light displacement yacht with 52% of the weight in the keel
      • Category A yacht engineered by "Ceccarelli yacht design and engineering"
      Please contact us for further information.
